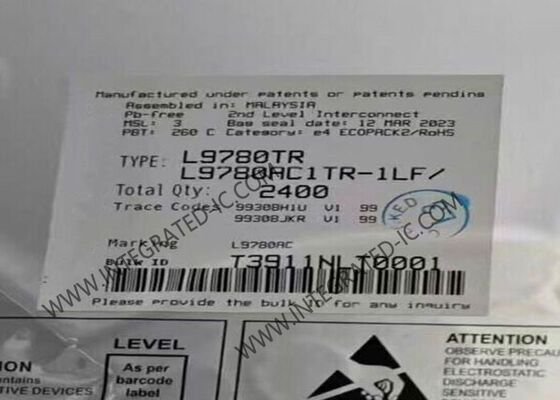

L9780TR Sensor IC Wide Range Air Fuel Sensor Interface with 4.9V ~ 5.1V Supply Voltage in LQFP-48 Package

L9780TR Sensor IC Wide Range Air Fuel Sensor Interface with 4.9V ~ 5.1V Supply Voltage in LQFP-48 Package
L9780TR Sensor IC Wide Range Air Fuel Sensor Interface with 4.9V ~ 5.1V Supply Voltage in LQFP-48 Package L9780TR Sensor IC Wide Range Air Fuel Sensor Interface with 4.9V ~ 5.1V Supply Voltage in LQFP-48 Package

Large Image :  L9780TR Sensor IC Wide Range Air Fuel Sensor Interface with 4.9V ~ 5.1V Supply Voltage in LQFP-48 Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: L9780TR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LQFP-48
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

L9780TR Sensor IC Wide Range Air Fuel Sensor Interface with 4.9V ~ 5.1V Supply Voltage in LQFP-48 Package

Description
Part Number: L9780TR Voltage - Supply: 4.9V ~ 5.1V
Package: LQFP-48 (7x7) Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount Applications: Air Fuel Sensor Interface
Highlight:

Wide Range Air Fuel Sensor IC

,

4.9V ~ 5.1V Supply Voltage Sensor IC

,

LQFP-48 Package Air Fuel Sensor Interface

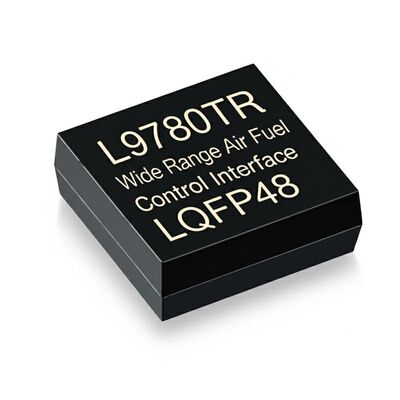

L9780TR Sensor IC Wide Range Air Fuel Sensor Control Interface LQFP48
The L9780TR is an integrated circuit specifically designed to interface with various wide range air fuel sensors. This advanced IC manages the oxygen pump of wide range air fuel sensors using a voltage controlled current source (VCCS) with a PI controller featuring external compensation network for sensor adaptability.
Key Specifications
Parameter Specification
Applications Air Fuel Sensor Interface
Voltage Supply 4.9V ~ 5.1V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 48-LQFP
Supplier Device Package 48-LQFP (7x7)
Advanced Features
  • Voltage controlled current source (VCCS) pump cell driver with selectable voltage clamp
  • Offset compensation, diagnostic (short to battery) and 2 output channels
  • Impedance measurement of reference cell
  • 10-bit multiplexed A/D converter
  • Scaling amplifier with sample & hold and offset compensation
  • Control voltage amplifier with sample & hold and offset compensation
  • Synchronous or asynchronous functionality selectable via SPI
  • Heater FET driver with diagnostic (short to battery, short to ground, open circuit)
  • 4 possible levels for clean current
  • SPI with fault detection
  • Digital input and outputs compatible with 5V or 3.3V voltage supply
  • 2 channels available to connect compensation networks
  • Short to battery diagnostic on functional ground (pin SR)
  • Short to battery/ground diagnostic on voltage from reference cell (pin INRC)
  • -5V internal supply
  • 4 MHz internal oscillator
  • Package: 48 pin LQFP
  • Technology: BCD5s_70 V
Primary Application
Automotive - Powertrain for Internal Combustion Engines (ICE)
