STSPIN840 Integrated Circuit Chip Compact Dual Brushed DC Motor Driver with 1.5 A Output Current and 7V to 45V Operating Voltage

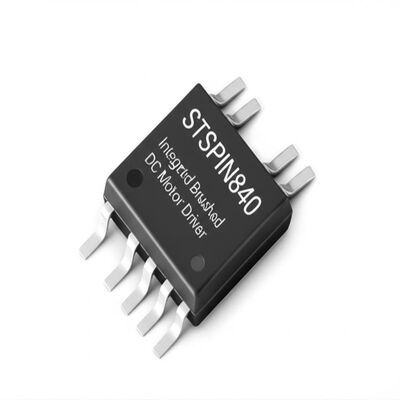

Large Image : STSPIN840 Integrated Circuit Chip Compact Dual Brushed DC Motor Driver with 1.5 A Output Current and 7V to 45V Operating Voltage

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	STSPIN840

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QFN-24
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

STSPIN840 Integrated Circuit Chip Compact Dual Brushed DC Motor Driver with 1.5 A Output Current and 7V to 45V Operating Voltage

Description

Part Number:	STSPIN840	Output Current::	1.5 A
Operating Supply Current::	2.7 MA	Minimum Operating Temperature::	- 40 C
Maximum Operating Temperature::	+ 150 C	Unit Weight::	44 Mg
Highlight:	Compact Dual Brushed DC Motor Driver Integrated Circuit Chip , 1.5 A Output Current Motor Driver , 7V to 45V Operating Voltage STSPIN840

STSPIN840 Integrated Circuit Chip Compact Dual Brushed DC Motor Driver

The STSPIN840 is a compact brushed DC motor driver capable of simultaneously driving two bi-directional brushed DC motors. This highly integrated solution combines both control logic and a fully protected low RDSon dual full-bridge power stage in an extremely small 4 x 4 mm QFN package.

Technical Specifications

Parameter	Value
Motor Type	Brushed DC
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (4)
Interface	Logic
Technology	Power MOSFET
Applications	Industrial
Current - Output	1.5A
Voltage - Supply	7V - 45V
Voltage - Load	48V (Max)
Operating Temperature	-40°C to 150°C (TJ)

Key Features

Operating voltage from 7 to 45 V
Maximum output current 1.5 Arms
RDSon HS + LS = 1 Ω typical
Current control with adjustable OFF time
Current sensing based on external shunt resistors
Comprehensive protection suite
Non-dissipative overcurrent protection
Short-circuit protection
Undervoltage lockout
Thermal shutdown
Parallel operation mode achieving single full-bridge configuration with output IRMS = 3 Arms and RDSon HS + LS = 500 mΩ typical
Low standby current consumption

Applications

Industrial automation and service robots
Medical and health care equipment
ATM and money handling machines
Stage lighting systems
Thermal printers
Textile and sewing machines
Vending machines
Office and home automation
