STTH30R06CW 600V 30A Ultrafast Switching High Voltage Rectifier Diode Integrated Circuit Chip

STTH30R06CW 600V 30A Ultrafast Switching High Voltage Rectifier Diode Integrated Circuit Chip

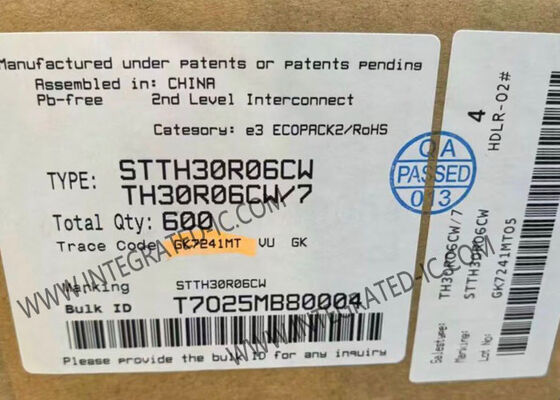

STTH30R06CW 600V 30A Ultrafast Switching High Voltage Rectifier Diode Integrated Circuit Chip STTH30R06CW 600V 30A Ultrafast Switching High Voltage Rectifier Diode Integrated Circuit Chip

Large Image :  STTH30R06CW 600V 30A Ultrafast Switching High Voltage Rectifier Diode Integrated Circuit Chip

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: STTH30R06CW
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-247-3
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

STTH30R06CW 600V 30A Ultrafast Switching High Voltage Rectifier Diode Integrated Circuit Chip

Description
Part Number: STTH30R06CW Vr - Reverse Voltage: 600 V
Id - Continuous Drain Current: 20 A If - Forward Current: 30 A
Vf - Forward Voltage: 2.9 V Ir - Reverse Current: 60 UA
Highlight:

600V Rectifier Diode

,

Ultrafast Switching Integrated Circuit Chip

,

30A Forward Current High Voltage Diode

STTH30R06CW Integrated Circuit Chip
600V Turbo 2 Ultra Fast High Voltage Rectifiers Diode
Product Overview
The STTH30R06CW integrated circuit chip utilizes Turbo 2 600V technology, specifically designed as a boost diode for continuous mode power factor corrections and hard switching conditions. This component is also ideal for use as a free wheeling diode in power supplies and various power switching applications.
Technical Specifications
Diode Configuration 1 Pair Common Cathode
Technology Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 2.9 V @ 15 A
Speed Fast Recovery ≤ 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 60 µA @ 600 V
Operating Temperature - Junction 175°C (Max)
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247-3
Key Features
  • Ultrafast switching capability
  • Low reverse current
  • Low thermal resistance
  • Reduced switching and conduction losses
Applications
  • Industrial equipment
  • Energy distribution systems
  • Solar centralized generation
  • Industrial tools, motor drives, and equipment
  • Power supplies and converters
  • AC-DC converters
