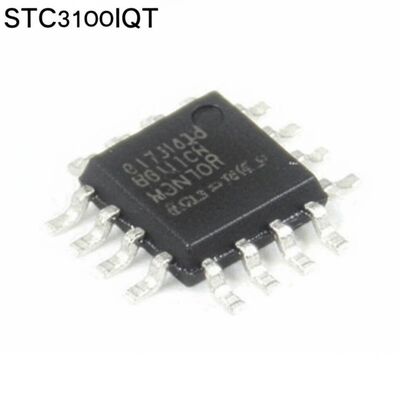

STC3100IQT Battery Monitor IC with Coulomb Counter 2.5A Output Current and I2C Interface for Lithium Ion Batteries

STC3100IQT Battery Monitor IC with Coulomb Counter 2.5A Output Current and I2C Interface for Lithium Ion Batteries
STC3100IQT Battery Monitor IC with Coulomb Counter 2.5A Output Current and I2C Interface for Lithium Ion Batteries STC3100IQT Battery Monitor IC with Coulomb Counter 2.5A Output Current and I2C Interface for Lithium Ion Batteries

Large Image :  STC3100IQT Battery Monitor IC with Coulomb Counter 2.5A Output Current and I2C Interface for Lithium Ion Batteries

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: STC3100IQT
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: DFN-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

STC3100IQT Battery Monitor IC with Coulomb Counter 2.5A Output Current and I2C Interface for Lithium Ion Batteries

Description
Part Number: STC3100IQT Output Current:: 2.5 A
Operating Supply Voltage:: 2.7 V To 5.5 V Maximum Operating Temperature:: + 85 C
Minimum Operating Temperature:: - 40 C Unit Weight:: 37.400 Mg
Highlight:

Coulomb Counter Battery Monitor IC

,

2.5A Output Current Integrated Circuit Chip

,

I2C Interface Gas Gauge IC

STC3100IQT Integrated Circuit Chip Battery Monitor IC
The STC3100IQT is a sophisticated battery monitor IC with integrated coulomb counter and gas gauge functionality, designed for precise monitoring of single-cell Li-Ion battery systems.
Product Overview
This advanced integrated circuit monitors critical battery parameters including voltage, temperature, and current. It features hardware functions for implementing a gas gauge for battery charge monitoring, utilizing a programmable 12- to 14-bit A/D converter. With a typical 30 milliOhms external sense resistor, the battery current can reach up to 2.5 A, while the accumulator system provides capacity measurement up to ±7000 mAh with a resolution of 0.2 mAh.
Technical Specifications
Function Battery Monitor
Battery Chemistry Lithium Ion
Number of Cells 1
Interface I2C
Operating Temperature -40°C ~ 85°C (TA)
Key Features
  • Battery voltage monitoring
  • Internal temperature sensor
  • Coulomb counter with 12/14-bit AD converter, ±80 mV input voltage range
  • Internal or external 32768 Hz time base
  • I2C interface for gas gauge monitoring and device control
  • 32-RAM bytes
  • 8-byte unique device ID
  • One general-purpose I/O
Applications
Cellular phones, PDA, MP3 players, cordless phones, digital cameras, USB appliances, Bluetooth devices
