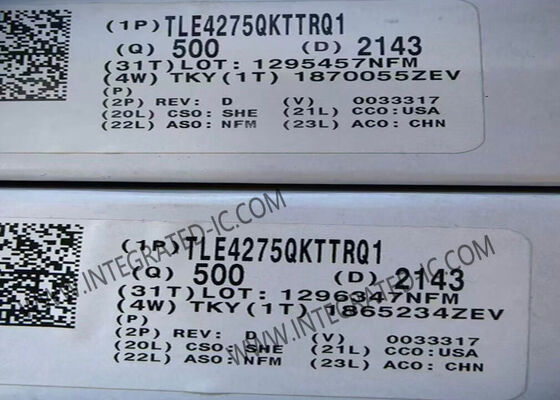

TLE4275QKTTRQ1 Integrated Circuit Chip Automotive 500mA 40V Low-Dropout Linear Regulator With Power-Good

TLE4275QKTTRQ1 Integrated Circuit Chip Automotive 500mA 40V Low-Dropout Linear Regulator With Power-Good
TLE4275QKTTRQ1 Integrated Circuit Chip Automotive 500mA 40V Low-Dropout Linear Regulator With Power-Good

Large Image :  TLE4275QKTTRQ1 Integrated Circuit Chip Automotive 500mA 40V Low-Dropout Linear Regulator With Power-Good

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TLE4275QKTTRQ1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-263-5
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

TLE4275QKTTRQ1 Integrated Circuit Chip Automotive 500mA 40V Low-Dropout Linear Regulator With Power-Good

Description
Part Number: TLE4275QKTTRQ1 Output Voltage:: 5 V
Output Current:: 450 MA Number Of Outputs:: 1 Output
Input Voltage - Min:: 5.5 V Input Voltage - Max:: 42 V
Highlight:

500mA Output Current Integrated Circuit Chip

,

40V Input Voltage Linear Regulator

,

Low-Dropout Automotive LDO Regulator

TLE4275QKTTRQ1 Integrated Circuit Chip
Automotive 500mA 40V Low-Dropout Regulator With Power-Good
Product Overview
The TLE4275-Q1 is a low-dropout linear regulator designed for battery-connected automotive applications. With an input voltage range extending to 40V and capability to drive loads up to 500mA, this device withstands automotive transients including load dumps. Featuring only 28µA quiescent current at IOUT = 1mA, it's ideal for powering always-on components such as microcontrollers (MCUs) and controller area network (CAN) transceivers in standby systems.
Technical Specifications
Parameter Specification
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 42V
Voltage - Output (Min/Fixed) 5V
Voltage Dropout (Max) 0.5V @ 300mA
Current - Output 450mA
Current - Quiescent (Iq) 200 µA
Current - Supply (Max) 22 mA
PSRR 60dB (100Hz)
Protection Features Over Current, Over Temperature, Reverse Polarity
Operating Temperature -40°C ~ 150°C
Grade Automotive
Key Features
  • AEC-Q100 qualified for automotive applications
  • Input voltage range: 3.0V to 40V (new chip)
  • Maximum output current: 500mA (new chip)
  • Output voltage accuracy: ±2.0% across line, load and temperature
  • Low dropout voltage: 500mV (max) at 300mA
  • Low quiescent current: 28µA (typ) at IOUT = 1mA
  • Excellent line transient response with ±2% VOUT deviation
  • Power-good (reset) with programmable delay period
  • Stable with 2.2µF or larger capacitor
  • Reverse-polarity, overcurrent and overtemperature protection
Applications
  • Reconfigurable instrument clusters
  • Body control modules (BCM)
  • Always-on, battery-connected applications including automotive gateways and remote keyless entries (RKE)
