SGM800-2.63YN5G Low-Power Integrated Circuit Chip with Capacitor-Adjustable Reset Timeout for 1.6V to 5V System Voltages

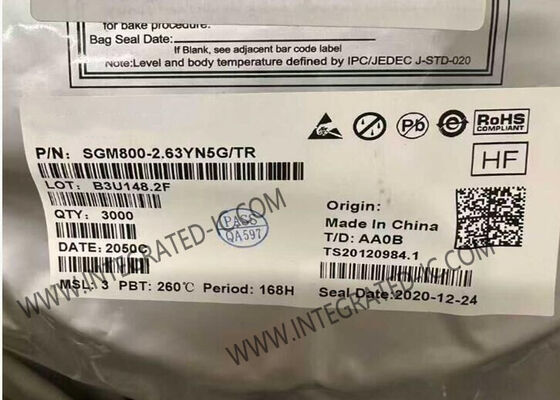

Large Image : SGM800-2.63YN5G Low-Power Integrated Circuit Chip with Capacitor-Adjustable Reset Timeout for 1.6V to 5V System Voltages

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	SGM800-2.63YN5G

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SOT-23-5
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

SGM800-2.63YN5G Low-Power Integrated Circuit Chip with Capacitor-Adjustable Reset Timeout for 1.6V to 5V System Voltages

Description

Part Number:

SGM800-2.63YN5G

System Voltages:

1.6V To 5V

Package:

SOT-23-5

Ambient Temperature:

-40°C To +85°C

Highlight:

Low-Power Integrated Circuit Chip

Capacitor-Adjustable Reset Timeout Microprocessor Supervisor Circuit

1.6V to 5V System Voltages Reset Circuit

SGM800-2.63YN5G Integrated Circuit Chip

Low-Power SOT μP Reset Circuit With Capacitor-Adjustable Reset Timeout Delay

Product Overview

The SGM800-2.63YN5G is a low-power microprocessor supervisor circuit designed to monitor system voltages from 1.6V to 5V. This device provides reliable system monitoring by asserting a reset signal when the VCC supply voltage drops below the preset threshold. The reset output remains active for an externally adjustable timeout period after VCC recovers above the threshold.

Key Features

Monitors system voltages from 1.6V to 5V
Capacitor-adjustable reset timeout period
Low quiescent current (3μA typical)
Open-drain RESET output option
Guaranteed RESET valid to VCC = 1V
Immune to short VCC transients
Available in Green SOT-23-5 package
Operating temperature range: -40°C to +85°C

Applications

Portable equipment, battery-powered computers and controllers, automotive systems, medical equipment, intelligent instruments, embedded controllers, critical microprocessor monitoring, set-top boxes, and computer systems.
