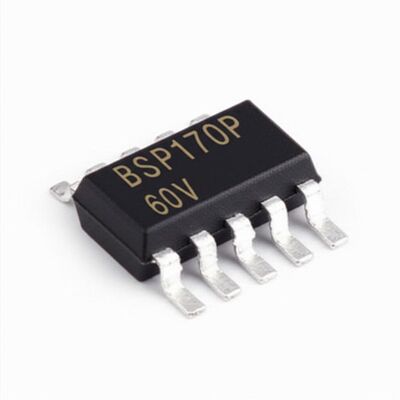

BSP170P Integrated Circuit Chip P-Channel Power MOSFET with 60V Drain-Source Voltage 1.9A Continuous Drain Current and Fast Switching

Large Image : BSP170P Integrated Circuit Chip P-Channel Power MOSFET with 60V Drain-Source Voltage 1.9A Continuous Drain Current and Fast Switching

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	BSP170P

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SOT-223-4
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

BSP170P Integrated Circuit Chip P-Channel Power MOSFET with 60V Drain-Source Voltage 1.9A Continuous Drain Current and Fast Switching

Description

Part Number:	BSP170P	Vds - Drain-Source Breakdown Voltage:	60 V
Id - Continuous Drain Current:	1.9 A	Rds On - Drain-Source Resistance:	239 MOhms
Qg - Gate Charge:	10 NC	Pd - Power Dissipation:	1.8 W
Highlight:	60V Drain-Source Voltage Power MOSFET , 1.9A Continuous Drain Current Integrated Circuit Chip , Fast Switching P-Channel FET

BSP170P Integrated Circuit Chip P-Channel Field-Effect Transistor 60V Power MOSFETs

BSP170P Integrated Circuit Chip P-Channel Field-Effect Transistor 60V Power MOSFETs

Product Description

BSP170P is a 60V, P-channel enhancement mode Field-Effect Transistor (FET) in SOT-223 package.

Specifications

Parameter	Value
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	1.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	300mOhm @ 1.9A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Vgs (Max)	±20V
Power Dissipation (Max)	1.8W (Ta)
Operating Temperature	-55°C ~ 155°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-223-4
Package / Case	TO-261-4, TO-261AA

Key Features

VDS(V) = -60V

lp = -1.9A (VGs = -10V)

RDs(ON) < 300mΩ (VGs = -10V)

Enhancement mode

Normal level

Avalanche rated

Fast switching

dv/dt rated

Pb-free lead-plating

Applications

EV traction inverter

Automotive electric pumps and fans 12V
