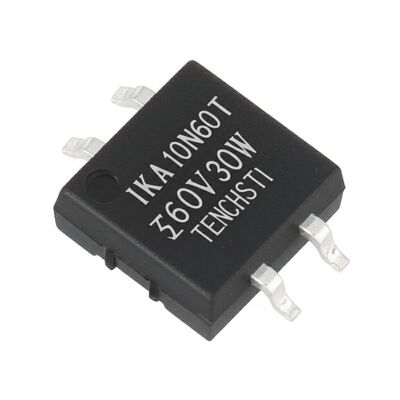

IKA10N60T 600V 30W TRENCHSTOP™ Series IGBT Transistor Integrated Circuit Chip

Large Image : IKA10N60T 600V 30W TRENCHSTOP™ Series IGBT Transistor Integrated Circuit Chip

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	IKA10N60T

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TO-220-3
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

IKA10N60T 600V 30W TRENCHSTOP™ Series IGBT Transistor Integrated Circuit Chip

Description

Part Number:	IKA10N60T	Collector- Emitter Voltage VCEO Max:	600 V
Collector-Emitter Saturation Voltage:	1.5 V	Continuous Collector Current At 25℃:	11.7 A
Pd - Power Dissipation:	30 W	Gate-Emitter Leakage Current:	100 NA
Highlight:	600V IGBT Transistor , 30W TRENCHSTOP™ Series , TRENCHSTOP™ Technology Integrated Circuit Chip

IKA10N60T Integrated Circuit Chip 600V 30W TRENCHSTOP™ Series IGBT Transistors

Product Overview

The IKA10N60T is a 600V IGBT transistor from the TRENCHSTOP™ Series, featuring advanced Fieldstop technology with a soft, fast recovery anti-parallel Emitter Controlled HE diode.

Technical Specifications

Parameter	Value
Series	TRENCHSTOP™
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	11.7 A
Current - Collector Pulsed (Icm)	30 A
Vce(on) (Max) @ Vge, Ic	2.05V @ 15V, 10A
Power - Max	30 W
Switching Energy	430µJ
Input Type	Standard
Gate Charge	62 nC
Td (on/off) @ 25°C	12ns/215ns
Test Condition	400V, 10A, 23Ohm, 15V
Reverse Recovery Time (trr)	115 ns
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack
Supplier Device Package	PG-TO220-3-31

Key Features

Very low VCE(sat) 1.5V (typ.)
Maximum Junction Temperature 175°C
Short circuit withstand time 5µs
TRENCHSTOP™ and Fieldstop technology for 600V applications offers:
- Very tight parameter distribution
- High ruggedness, temperature stable behavior
- Very high switching speed
Low EMI
Very soft, fast recovery anti-parallel Emitter Controlled HE diode
Qualified according to JEDEC1 for target applications
Pb-free lead plating; RoHS compliant

Applications

Washing Machine, Air Condition, Inverter and Variable Speed Drive
