BTH-060-02-F-D-A-K-TR 120 Position Board to Board Connectors with 0.50mm Pitch and Gold Contact Finish

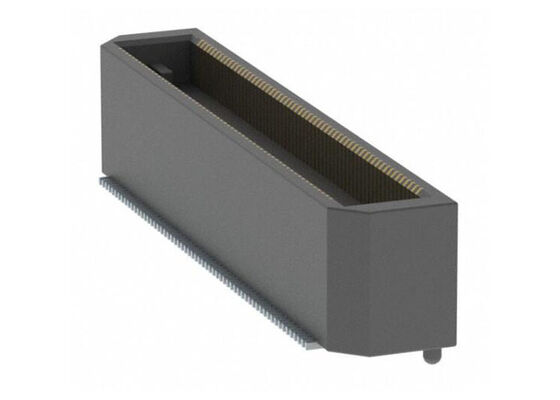

Large Image : BTH-060-02-F-D-A-K-TR 120 Position Board to Board Connectors with 0.50mm Pitch and Gold Contact Finish

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	BTH-060-02-F-D-A-K-TR

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	120POS
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

BTH-060-02-F-D-A-K-TR 120 Position Board to Board Connectors with 0.50mm Pitch and Gold Contact Finish

Description

Part Number:	BTH-060-02-F-D-A-K-TR	Number Of Positions:	120 Position
Current Rating:	2 A	Number Of Rows:	2 Row
Voltage Rating:	175 V	Pitch:	0.5 Mm (0.02 In)
Highlight:	120 Position Board to Board Connectors , 0.50mm Pitch Connectors , Gold Contact Finish Terminal Strip

BTH-060-02-F-D-A-K-TR Connectors

120 Position Board to Board Connectors with 0.50mm Basic Blade and Beam Terminal Strip

Product Overview

BTH-060-02-F-D-A-K-TR is a 120-position board-to-board connector from the BTH Series, featuring a 0.50mm basic blade and beam terminal strip design.

Technical Specifications

Specification	Details
Series	BTH
Connector Type	Header, Outer Shroud Contacts
Number of Positions	120
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	3.00µin (0.076µm)
Mated Stacking Heights	8mm
Height Above Board	0.286" (7.26mm)

Key Features

Available in cost-saving gold plating
Extended Life Product™ (E.L.P.™)
Optional tape and reel packaging
Six standard positions, up to 300 I/O pins
Stack height of 5.0 mm (.197"); Other heights available as application specific
Standard alignment pin feature

Product Image

Frequently Asked Questions

Are your products original?

Yes, all products are original, new original import is our purpose.

Which Certificates do you have?

We are ISO 9001:2015 Certified Company and member of ERAI.

Can you support small quantity order or sample? Is the sample free?

Yes, we support sample orders and small orders. Sample cost varies according to your order or project requirements.

How to ship my order? Is it safe?

We use express carriers such as DHL, FedEx, UPS, TNT, EMS. We can also use your suggested forwarder. Products are carefully packaged to ensure safety, and we take responsibility for any damage to your order.

What about the lead time?

We can ship stock parts within 5 working days. For items not in stock, we will confirm the lead time based on your order quantity.
