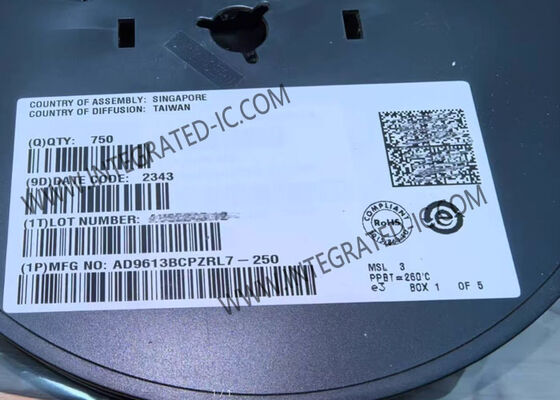

AD9613BCPZRL7-250 Integrated Circuit Chip 12-Bit Dual Channel Analog To Digital Converter with 250 MS/s Sampling Rate

The AD9613BCPZRL7-250 is a dual 12-bit analog-to-digital converter (ADC) with sampling speeds up to 250 MSPS. This IC is specifically engineered for communications applications requiring optimal balance of cost efficiency, compact size, wide bandwidth, and operational versatility.

• SNR = 69.6 dBFS at 185 MHz fIN and 250 MSPS
• SFDR = 86 dBc at 185 MHz fIN and 250 MSPS
• −149.9 dBFS/Hz input noise at 185 MHz, −1 dBFS AIN and 250 MSPS
• Total power consumption: 770 mW at 250 MSPS
• 1.8 V supply voltages
• LVDS (ANSI-644 levels) outputs
• Integer 1-to-8 input clock divider (625 MHz maximum input)
• Sample rates of up to 250 MSPS
• IF sampling frequencies of up to 400 MHz
• Internal ADC voltage reference
• Flexible analog input range: 1.4 V p-p to 2.0 V p-p (1.75 V p-p nominal)
• ADC clock duty cycle stabilizer
• 95 dB channel isolation/crosstalk
• Serial port control
• Energy-saving power-down modes

• Communications systems
• Diversity radio systems
• Multimode digital receivers (3G)
• TD-SCDMA, WiMax, WCDMA, CDMA2000, GSM, EDGE, LTE
• I/Q demodulation systems
• Smart antenna systems
• General-purpose software radios
• Ultrasound equipment
• Broadband data applications
