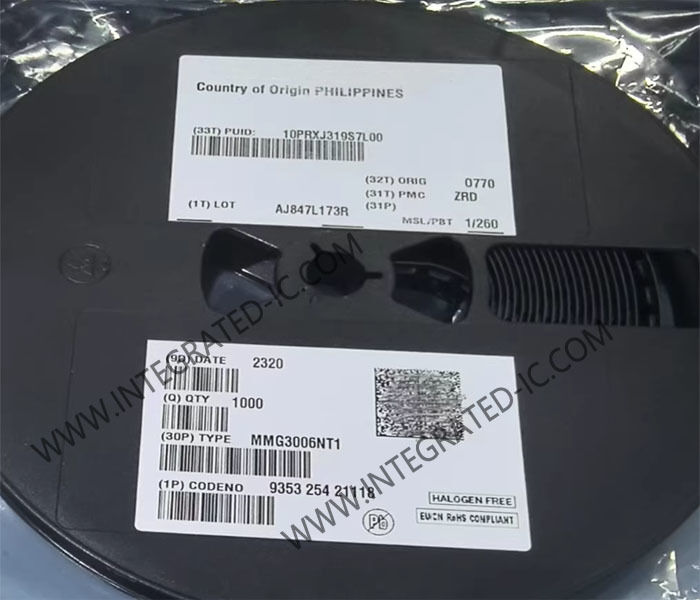

MMG3006NT1 Integrated Circuit Chip
33dBm InGaP HBT Broadband High Linearity Amplifier
Product Overview
The MMG3006NT1 is a broadband high linearity amplifier featuring internal input pre-matching, designed for a wide range of Class A, small-signal, high linearity general purpose applications. This amplifier is optimized for frequencies from 400 to 2400 MHz, making it suitable for Cellular, PCS, WLL, PHS, VHF, UHF, UMTS, and general small-signal RF applications.
Technical Specifications
| Parameter |
Value |
| Frequency Range |
400MHz ~ 2.4GHz |
| P1dB |
33dBm |
| Gain |
17.5dB |
| Noise Figure |
6.6dB |
| RF Type |
Cellular, PCS, PHS, WLL |
| Supply Voltage |
5V |
| Supply Current |
850mA |
| Test Frequency |
900MHz |
| Mounting Type |
Surface Mount |
| Package / Case |
16-VQFN Exposed Pad |
| Supplier Device Package |
16-QFN (4x4) |
Key Features
- Frequency: 400-2400 MHz
- P1dB: 33 dBm @ 900 MHz
- Small-Signal Gain: 17.5 dB @ 900 MHz
- Third Order Output Intercept Point: 49 dBm @ 900 MHz
- Single 5V Supply Operation
- Internally Input Pre-matched to 50 Ohms
Applications
Cellular, PCS, WLL, PHS, VHF, UHF, UMTS, and general small-signal RF applications.
