HMC627ALP5ETR Integrated Circuit Chip 6-Bit Digital Variable Gain Amplifier with 50MHz ~ 1GHz Frequency and High Output IP3 +36 dBm

HMC627ALP5ETR Integrated Circuit Chip 6-Bit Digital Variable Gain Amplifier with 50MHz ~ 1GHz Frequency and High Output IP3 +36 dBm
HMC627ALP5ETR Integrated Circuit Chip 6-Bit Digital Variable Gain Amplifier with 50MHz ~ 1GHz Frequency and High Output IP3 +36 dBm HMC627ALP5ETR Integrated Circuit Chip 6-Bit Digital Variable Gain Amplifier with 50MHz ~ 1GHz Frequency and High Output IP3 +36 dBm

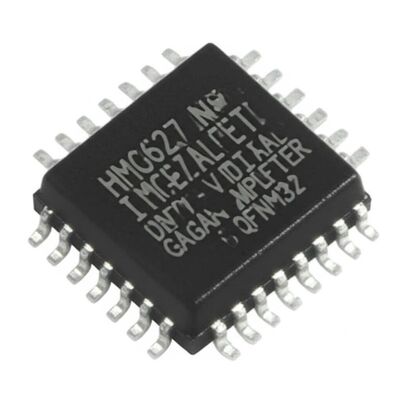

Large Image :  HMC627ALP5ETR Integrated Circuit Chip 6-Bit Digital Variable Gain Amplifier with 50MHz ~ 1GHz Frequency and High Output IP3 +36 dBm

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: HMC627ALP5ETR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-32
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

HMC627ALP5ETR Integrated Circuit Chip 6-Bit Digital Variable Gain Amplifier with 50MHz ~ 1GHz Frequency and High Output IP3 +36 dBm

Description
Part Number: HMC627ALP5ETR High Output IP3: +36 DBm
Typical Step Error: ±0.25 DB Frequency: 50MHz ~ 1GHz
Voltage - Supply: 5V Current - Supply: 90.5mA
Highlight:

6-Bit Digital Integrated Circuit Chip

,

50MHz ~ 1GHz Digital Variable Gain Amplifier

,

High Output IP3 +36 dBm VGA

HMC627ALP5ETR Integrated Circuit Chip
6-Bit Digital Variable Gain Amplifier in QFN32 Package
Product Overview
The HMC627ALP5ETR is a digitally controlled variable gain amplifier operating from 50 MHz to 1 GHz. This versatile component can be programmed to provide anywhere from 11.5 dB attenuation to 20 dB of gain in precise 0.5 dB steps.
Key Performance Specifications
Parameter Specification
Frequency Range 50 MHz ~ 1 GHz
P1dB 20 dBm
Gain 17.5 dB
Noise Figure 4.3 dB
RF Type LTE, WiMax
Supply Voltage 5V
Supply Current 90.5 mA
Test Frequency 350 MHz ~ 1 GHz
Mounting Type Surface Mount
Package / Case 32-VFQFN Exposed Pad
Supplier Device Package 32-QFN (5x5)
Advanced Features
  • -11.5 to 20 dB Gain Control in 0.5 dB Steps
  • Power-up State Selection
  • High Output IP3: +36 dBm
  • TTL/CMOS Compatible, Serial or Parallel Control
  • ±0.25 dB Typical Step Error
  • Single +5V Supply
  • 32 Lead 5x5 mm SMT Package
Target Applications
  • Cellular / 3G Infrastructure
  • WiBro / WiMAX / 4G
  • Microwave Radio and VSAT
  • Test Equipment and Sensors
  • IF & RF Applications
Additional Technical Details
The HMC627ALP5ETR delivers a noise figure of 4.3 dB in its maximum gain state, with output IP3 of up to +36 dBm in any state. The dual mode gain control interface accepts either three wire serial input or 6 bit parallel word. This device also features user selectable power up state and serial output for cascading other Hittite serially controlled components. The HMC627ALP5ETR is housed in a RoHS compliant 5x5 mm QFN leadless package and requires no external matching components.
