UBX-M8030-KT Wireless Communication Module with Concurrent GNSS Reception Low Power Consumption and High Sensitivity M8 GNSS Chips QFN40

UBX-M8030-KT Wireless Communication Module with Concurrent GNSS Reception Low Power Consumption and High Sensitivity M8 GNSS Chips QFN40
UBX-M8030-KT Wireless Communication Module with Concurrent GNSS Reception Low Power Consumption and High Sensitivity M8 GNSS Chips QFN40

Large Image :  UBX-M8030-KT Wireless Communication Module with Concurrent GNSS Reception Low Power Consumption and High Sensitivity M8 GNSS Chips QFN40

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: UBX-M8030-KT
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-40
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

UBX-M8030-KT Wireless Communication Module with Concurrent GNSS Reception Low Power Consumption and High Sensitivity M8 GNSS Chips QFN40

Description
Part Number: UBX-M8030-KT Number Of Concurrent GNSS: 3
Supply Voltage: 1.4 V To 3.6 V Digital I/O Voltage Level: 1.65 V To 3.6 V
Package: QFN40 Operating Temperature: –40°C To +85°C
Highlight:

Concurrent GNSS Reception Wireless Communication Module

,

Low Power Consumption GNSS Module

,

High Sensitivity M8 GNSS Chips

UBX-M8030-KT Wireless Communication Module
High-performance standard precision GNSS module featuring versatile M8 chips in QFN40 package
Product Overview
The UBX-M8030-KT is a high-performance standard precision GNSS chip delivering exceptional sensitivity and rapid acquisition times across all GNSS systems. This advanced module supports concurrent reception of up to three GNSS systems (GPS/Galileo combined with either Beidou or GLONASS), enabling superior positioning accuracy in challenging environments like urban canyons, even with weak signals and high dynamics.
Key Features
  • Versatile GNSS chips available in three product grades
  • Concurrent reception of up to 3 GNSS systems (GPS, Galileo, GLONASS, BeiDou)
  • Industry-leading -167 dBm navigation sensitivity
  • Lowest current consumption in the industry
  • Superior position accuracy in urban canyon environments
  • Advanced security and integrity protection
  • Comprehensive support for all satellite augmentation systems
  • Extended operating temperature range of -40°C to +105°C for automotive grade
Technical Specifications
GNSS Systems BeiDou, Galileo, GLONASS, GPS / QZSS
Concurrent GNSS 3 systems simultaneously
Oscillators Crystal supported, TCXO supported
Supply Voltage 1.4 V to 3.6 V
Digital I/O Voltage 1.65 V to 3.6 V
Power Consumption (2 concurrent GNSS) 21 mA @ 3.0 V (Continuous), 5.3 mA @ 3.0 V (PSM, 1 Hz)
Backup Supply 1.4 V to 3.6 V
Package 40 pin QFN, 5.00 x 5.00 x 0.59 mm
Operating Temperature -40°C to +85°C
Antenna Support Pin (active) for external antenna, Pin (passive) for external antenna

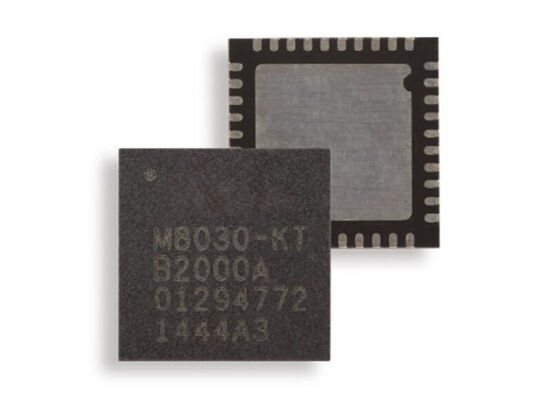

Product Image
UBX-M8030-KT Wireless Communication Module with Concurrent GNSS Reception Low Power Consumption and High Sensitivity M8 GNSS Chips QFN40 0
