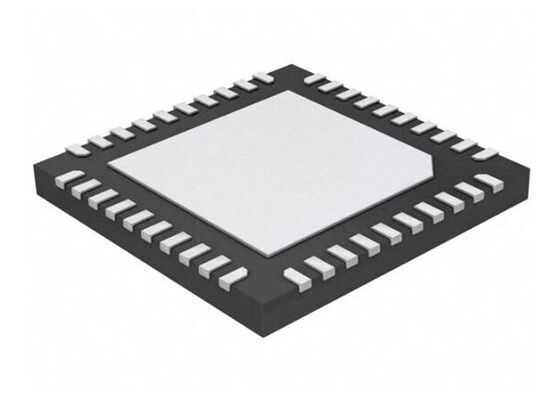

MP6536DU-LF 26V 3-Channel Half-Bridge Driver IC with 5.5A Output Current QFN40 Package

Description

Part Number:	MP6536DU-LF	Output Current:	5.5 A
Pd - Power Dissipation:	4.2 W	Voltage - Supply:	5V ~ 26V
Rds On (Typ):	140mOhm LS + HS	Operating Temperature:	-40°C ~ 125°C (TJ)
Highlight:	26V Driver IC , 3-Channel Half-Bridge Driver , 5.5A Output Current Integrated Circuit Chip

MP6536DU-LF Integrated Circuit Chip 26V 3-Channel Half-Bridge Driver IC QFN40

The MP6536DU-LF is a 3-channel half-bridge driver IC designed specifically for driving 3-phase brushless DC motors. This advanced component incorporates comprehensive protection features including low-current shutdown mode, standby mode, input under-voltage protection, current limiting, thermal shutdown, and fault flag signal output.

Product Specifications

Parameter	Value
Output Configuration	Half Bridge (3)
Applications	DC Motors, General Purpose
Interface	Logic, PWM
Load Type	Capacitive
Technology	Power MOSFET
Rds On (Typ)	140mOhm LS + HS
Current - Output / Channel	5.5A
Current - Peak Output	5.5A
Voltage - Supply	5V ~ 26V
Voltage - Load	5V ~ 26V
Operating Temperature	-40°C ~ 125°C (TJ)
Features	Bootstrap Circuit
Fault Protection	Current Limiting, Over Temperature, Short Circuit, UVLO
Mounting Type	Surface Mount
Package / Case	40-VFQFN Exposed Pad
Supplier Device Package	40-QFN (5x5)

Key Features

5V to 26V VDD operating range
±5.5A peak current output capability
Up to 1MHz PWM frequency support
Protected integrated power 0.14Ω switches
10ns switch dead time
All switches current limited
Internal under-voltage protection
Internal thermal protection
Short-circuit protection
Fault output flag for system monitoring

Primary Applications

3-Phase BLDC Motor Drive systems
