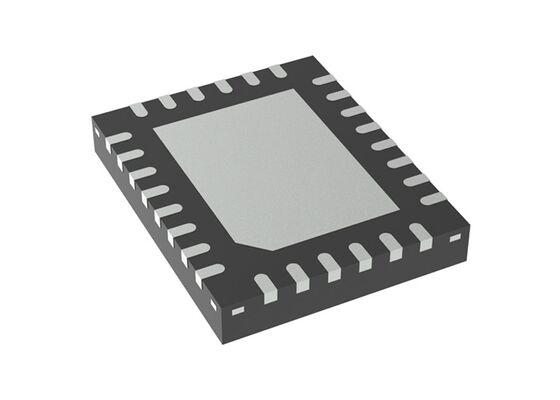

OPT3101RHFR Sensor IC Long-Range High-Speed 16-Bit Distance Output Proximity and Distance Sensor AFE

OPT3101RHFR Sensor IC Long-Range High-Speed 16-Bit Distance Output Proximity and Distance Sensor AFE
OPT3101RHFR Sensor IC Long-Range High-Speed 16-Bit Distance Output Proximity and Distance Sensor AFE

Large Image :  OPT3101RHFR Sensor IC Long-Range High-Speed 16-Bit Distance Output Proximity and Distance Sensor AFE

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: OPT3101RHFR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: VQFN-28
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

OPT3101RHFR Sensor IC Long-Range High-Speed 16-Bit Distance Output Proximity and Distance Sensor AFE

Description
Part Number: OPT3101RHFR Maximum Operating Temperature:: + 85 C
Minimum Operating Temperature:: - 40 C Number Of Frames Per Second:: 4000 Fps
Operating Supply Voltage:: 1.8 V, 3.3 V Unit Weight:: 67.800 Mg
Highlight:

Long-Range Sensor IC

,

High-Speed Proximity Sensor

,

16-Bit Distance Output Distance Sensor AFE

OPT3101RHFR Sensor IC ToF-Based Long-Range Proximity And Distance Sensor AFE
The OPT3101RHFR is a high-speed, high-resolution analog front-end (AFE) designed for continuous-wave, time-of-flight based proximity sensing and range finding applications. This device integrates a complete depth processing pipeline including ADC, timing sequencer, and digital processing engine, along with a built-in illumination driver suitable for most target applications.
Key Specifications
Resolution 16-bit
Channels 3
Analog Supply Voltage 1.7V - 1.9V, 3V - 3.6V
Digital Supply Voltage 1.7V - 1.9V
Advanced Features
  • Long-range distance measurement with obstacle detection and avoidance
  • Design flexibility with wide variety of photodiodes and emitters
  • High sample rate up to 4 kHz
  • 16-bit distance output at 15-meter unambiguous range
  • De-aliasing capability to extend distance range
  • Three transmitter channels for multi-zone operation
  • Excellent ambient and sunlight rejection
  • 200-nA full-scale signal current
  • 88-dB signal phase dynamic range at 1 kHz
  • Supports DC ambient up to 200 µA with 60-dB rejection
  • Distance measurement independent of object reflectivity
  • Adaptive HDR for power saving and increased dynamic range
  • Configurable event detection and interrupt output
  • I2C interface for control and data communication
  • Integrated illumination driver with programmable current control up to 173 mA
  • Built-in temperature sensor for calibration
  • Single 3.3V or dual 1.8V/3.3V supply operation
  • Operating temperature: -40°C to 85°C
Application Areas
  • Precise Long-Range Distance Measurement:
    • Background suppression and accurate object counting in high-speed conveyor belt systems
    • Precise displacement sensing in factory automation
    • Non-contact distance and level measurement in harsh environments
  • Obstacle Detection and Avoidance:
    • Precise distance measurement for drone landing and navigation
    • Cliff and edge detection in vacuum cleaners
    • Perimeter scanning in automatic guided vehicles
    • Obstruction sensing in safety applications
