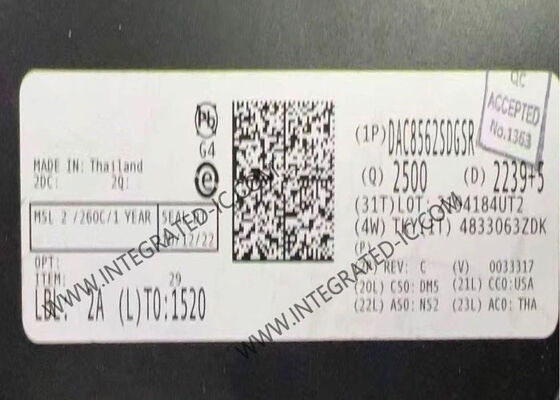

DAC8562SDGSR Integrated Circuit Chip 16-Bit Digital To Analog Converter VSSOP10
The DAC8562SDGSR is a low-power, voltage-output, dual-channel digital-to-analog converter available in 16-, 14-, and 12-bit resolutions. This integrated circuit features a 2.5-V, 4-ppm/°C internal reference, providing a full-scale output voltage range of 2.5 V or 5 V. The internal reference maintains ±5 mV initial accuracy and can source or sink up to 20 mA at the VREFIN/VREFOUT pin.
Technical Specifications
| Parameter |
Value |
| Number of Bits |
16 |
| Number of D/A Converters |
2 |
| Settling Time |
10µs (Typ) |
| Output Type |
Voltage - Buffered |
| Differential Output |
No |
| Data Interface |
SPI, DSP |
| Reference Type |
External, Internal |
| Voltage - Supply, Analog |
2.7V ~ 5.5V |
| Voltage - Supply, Digital |
2.7V ~ 5.5V |
| INL/DNL (LSB) |
±4, ±0.2 |
| Architecture |
String DAC |
| Operating Temperature |
-40°C ~ 125°C |
| Package / Case |
10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package |
10-VSSOP |
| Mounting Type |
Surface Mount |
Key Features
- Relative Accuracy: 16-Bit, 4 LSB INL
- Glitch Impulse: 0.1 nV-s
- Bidirectional Reference: Input or 2.5V Output
- Output Disabled by Default
- ±5mV Initial Accuracy (Max)
- 4ppm°C Temperature Drift (Typ)
- 10ppm/°C Temperature Drift (Max)
- 20mA Sink and Source Capability
- Power-On Reset to Zero Scale or Mid-Scale
- Low-Power: 4 mW (Typ, 5-V AVDD, Including Internal Reference Current)
- Wide Power-Supply Range: 2.7 V to 5.5 V
- 50-MHz SPI With Schmitt-Triggered Inputs
- LDAC and CLR Functions
- Output Buffer With Rail-to-Rail Operation
- Packages: VSSOP-10
- Temperature Range: -40°C to 125°C
Applications
- Portable Instrumentation
- PLC Analog Output Module
- Closed-Loop Servo Control
- Voltage Controlled Oscillator Tuning
- Data Acquisition Systems
- Programmable Gain and Offset Adjustment
