ADA4432-1WBRJZ Integrated Circuit Chip Single-Ended Output Video Filter Amplifier with 10 MHz Bandwidth for Automotive Applications

ADA4432-1WBRJZ Integrated Circuit Chip Single-Ended Output Video Filter Amplifier with 10 MHz Bandwidth for Automotive Applications
ADA4432-1WBRJZ Integrated Circuit Chip Single-Ended Output Video Filter Amplifier with 10 MHz Bandwidth for Automotive Applications ADA4432-1WBRJZ Integrated Circuit Chip Single-Ended Output Video Filter Amplifier with 10 MHz Bandwidth for Automotive Applications

Large Image :  ADA4432-1WBRJZ Integrated Circuit Chip Single-Ended Output Video Filter Amplifier with 10 MHz Bandwidth for Automotive Applications

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ADA4432-1WBRJZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOT-23-6
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

ADA4432-1WBRJZ Integrated Circuit Chip Single-Ended Output Video Filter Amplifier with 10 MHz Bandwidth for Automotive Applications

Description
Part Number: ADA4432-1WBRJZ Type: Video Filters
Bandwidth: 10.5 MHz Operating Supply Current: 7.6 MA
Voltage - Supply, Single/Dual (±): 2.6V ~ 3.6V Applications: Reconstruction Filter
Highlight:

Single-Ended Output Integrated Circuit Chip

,

10 MHz Bandwidth Video Filter Amplifier

,

Automotive Applications Video Reconstruction Filter

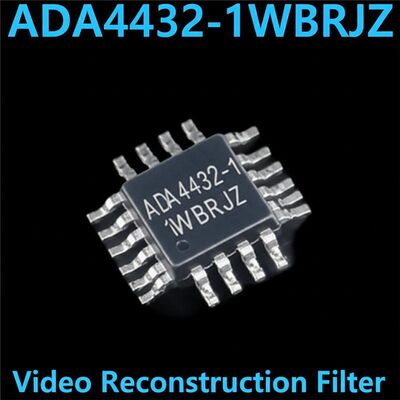

ADA4432-1WBRJZ Integrated Circuit Chip Single-Ended SD Video Filter Amplifier Video Reconstruction Filter
The ADA4432-1WBRJZ is a single-ended output fully integrated video reconstruction filter that combines overvoltage protection (short-to-battery [STB] protection) and short-to-ground (STG) protection on the outputs, with excellent video specifications and low power consumption.
This device features a high-order filter with −3 dB cutoff frequency response at 10 MHz and 45 dB of rejection at 27 MHz. The ADA4432-1 features an internally fixed gain of 2 V/V, making it ideal for SD video applications, including NTSC and PAL.
Specifications
Applications Reconstruction Filter
Output Type Single-Ended
Number of Circuits 1
-3dB Bandwidth 10.5 MHz
Current - Supply 7.6 mA
Current - Output / Channel 50 mA
Voltage - Supply, Single/Dual (±) 2.6V ~ 3.6V
Mounting Type Surface Mount
Package / Case SOT-23-6
Supplier Device Package SOT-23-6
Key Features
  • Qualified for automotive applications
  • Output overvoltage (short-to-battery) protection up to 18 V
  • Short-to-battery output flag for wire diagnostics
  • Output short-to-ground protection
  • Fifth-order, low-pass video filter
  • 0.1 dB flatness to 3 MHz
  • −3 dB bandwidth of 10 MHz
  • 45 dB rejection at 27 MHz
  • Ultralow power-down current: 13.5 µA typical
  • Low quiescent current: 7.6 mA typical
  • Low supply voltage: 2.6 V to 3.6 V
Applications
  • Automotive rearview cameras
  • Automotive video electronic control units (ECUs)
  • Surveillance video systems
