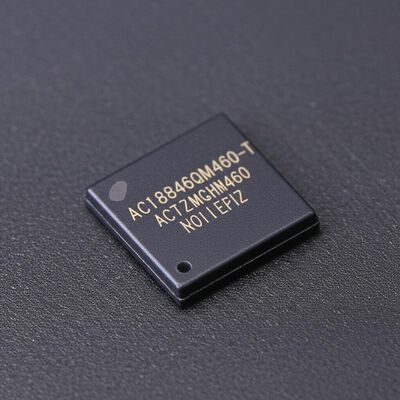

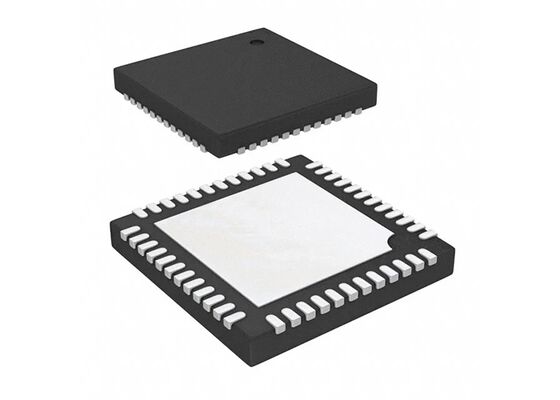

ACT8846QM460-T Integrated Circuit Chip Advanced PMU For Multi-Core Application Processors
The ACT8846QM460-T is a complete, cost-effective, and highly-efficient ActivePMU™ power management solution optimized for the power, voltage sequencing and control requirements of Rockchip RK31x8 application processor family.
Specifications
| Parameter |
Value |
| Applications |
Processor |
| Current - Supply |
600µA |
| Voltage - Supply |
3V ~ 5.5V |
| Operating Temperature |
-40°C ~ 85°C |
Key Features
Integrated Power Supplies
- Four DC/DC Step-Down (Buck) Regulators: 2 x 2.8A, 2 x 1.5A
- Five Low-Noise LDOs: 2 x 150mA, 3 x 350mA
- Three Low-Input Voltage LDOs: 1 x 150mA, 2 x 350mA
- One Low IQ Keep-Alive LDO
- Backup Battery Charger
System Control and Interface
- Four General Purpose I/O with PWM Drivers
- I2C Serial Interface
- Interrupt Controller
System Management
- Reset Interface and Sequencing Controller
- Power on Reset
- Soft / Hard Reset
- Watchdog Supervision
- Multiple Sleep Modes
- Thermal Management Subsystem
Applications
- Tablet PC
- Mobile Internet Devices (MID)
- E-books
- Personal Navigation Devices
- Smart Phones
