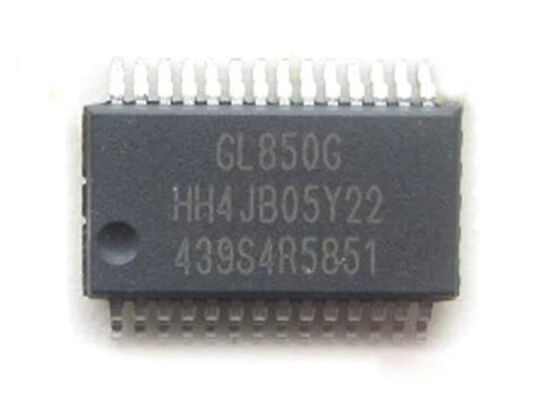

GL850G Integrated Circuit Chip 480Mb/s USB 2.0 Hub Controller
The GL850G is a USB 2.0 Hub Controller that integrates both 5V to 3.3V and 3.3V to 1.8V voltage drop regulators into a single chip, eliminating the need for external LDO components. The power enable pin supports both high-enable and low-enable power switches, providing enhanced flexibility in component selection.
This controller features an embedded 8-bit RISC processor that manages control/status registers and responds to USB host requests. The firmware controls general purpose I/O (GPIO) to access external EEPROM, enabling customized PID and VID configuration as defined in the external EEPROM.
Technical Specifications
| Product Category |
USB Interface IC |
| Product Type |
USB Controllers |
| Controller Type |
USB Controller Hub |
| Mounting Style |
SMD/SMT |
| Package / Case |
SSOP-28 |
| Standard |
USB 2.0 |
| Data Rate |
480 Mb/s |
| Supply Voltage Range |
3 V - 5.5 V |
| Operating Supply Current |
52.4 mA |
| Operating Temperature |
0℃ to +85℃ |
| Interface Type |
USB |
| Number of Ports |
5 Port |
| Operating Supply Voltage |
3.3 V, 5 V |
Key Features
- Compliant to USB Specification Revision 2.0
- Support for 4/3/2 downstream ports via I/O pin configuration
- Upstream port supports both high-speed (HS) and full-speed (FS) traffic
- Downstream ports support HS, FS, and low-speed (LS) traffic
- 1 control pipe (endpoint 0, 64-byte data payload) and 1 interrupt pipe (endpoint 1, 1 byte data payload)
- Backward compatible to USB specification Revision 1.1
- On-chip 8-bit micro-processor with RISC-like architecture
- USB optimized instruction set with 6 MIPS @ 12MHz performance
- 64-byte RAM and 2K mask ROM
- Support for customized PID, VID by reading external EEPROM
- Downstream port configuration via external EEPROM
- Integrated USB 2.0 transceiver
- Built-in upstream 1.5KΩ pull-up and downstream 15KΩ pull-down
- Embedded serial resistor for USB signals
- Conforms to bus power requirements
- Automatic switching between self-powered and bus-powered modes
- Support for compound-device (non-removable in downstream ports) via I/O pin configuration
- Configurable non-removable device support
- Built-in PLL supports external 12 MHz crystal/Oscillator clock input
- Built-in 5V to 3.3V regulator
- Low power consumption
- Improved output drivers with slew-rate control for EMI reduction
- Internal power-fail detection for ESD recovery
- Downstream port configuration via GPIO without external EEPROM
Applications
- Stand-alone USB hub
- PC motherboard USB hub, Docking of notebook
- Gaming console
- LCD monitor hub
- Any compound device requiring USB hub functionality
