IST8310 3-Axis Digital Magnetometer Sensor IC with 200Hz Output in 16-LGA Package

IST8310 3-Axis Digital Magnetometer Sensor IC with 200Hz Output in 16-LGA Package
IST8310 3-Axis Digital Magnetometer Sensor IC with 200Hz Output in 16-LGA Package IST8310 3-Axis Digital Magnetometer Sensor IC with 200Hz Output in 16-LGA Package

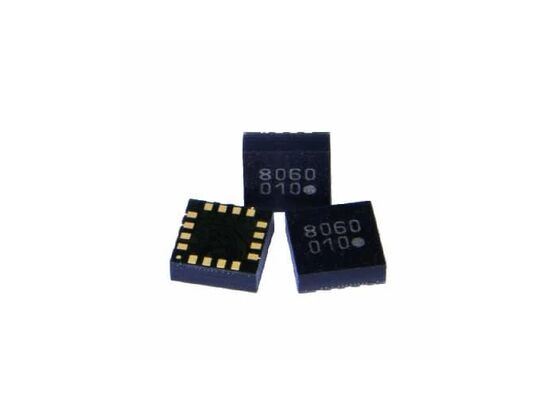

Large Image :  IST8310 3-Axis Digital Magnetometer Sensor IC with 200Hz Output in 16-LGA Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IST8310
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 16-LGA
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

IST8310 3-Axis Digital Magnetometer Sensor IC with 200Hz Output in 16-LGA Package

Description
Part Number: IST8310 Axis: X, Y, Z
Technology: Magnetoresistive Output Type: I2C
Sensing Range: ±1.6mT (X,Y), ±2.5mT (Z) Voltage - Supply: 1.72V ~ 3.6V
Highlight:

200Hz Digital Magnetometer

,

3-Axis Sensor IC

,

16-LGA Package Magnetometer

IST8310 Sensor IC 200Hz 3-Axis 3D Digital Magnetometer
The IST8310 is a 3-axis digital magnetometer in a compact 3.0 x 3.0 x 1.0 mm³, 16-pin LGA package. This integrated chip combines 3-axis magnetic sensors with digital control logic, built-in temperature compensation, and self-test functionality. Featuring I2C digital output with fast mode up to 400 kHz, it delivers high output data rate, ultra-low hysteresis, excellent temperature drift, and low noise performance for high-precision applications.
Technical Specifications
Technology Magnetoresistive
Axis X, Y, Z
Output Type I2C
Sensing Range ±1.6mT (X,Y), ±2.5mT (Z)
Voltage Supply 1.72V ~ 3.6V
Current Supply (Max) 320µA
Resolution 16 b
Bandwidth 200Hz
Operating Temperature -40°C ~ 85°C
Features Sleep Mode, Temperature Compensated
Key Features
  • High sensitivity of up to 330 LSB/Gauss
  • I2C slave, Fast Mode up to 400 kHz
  • 14 or 16 bits adjustable data output
  • Wide dynamic range: ±1600 µT (X, Y-axis) and ±2500 µT (Z-axis)
  • High output data rate of maximum 200 Hz
  • Ultra-low hysteresis (< 0.1 %FS)
  • Ultra-low sensitivity temperature drift (±0.016 %/°C)
  • Ultra-low offset temperature drift (0.024 uT/°C)
  • Wide operating temperature range (-40 ~ 85 °C)
  • High precision temperature compensation
  • Built-in self-test function
  • Software and algorithm support for tilt compensation, cross-axis compensation, soft/hard-iron calibration and noise suppression
  • RoHS, HF and TSCA compliant
Applications
  • Quadcopter/Drone Applications
  • Augmented Reality Applications
  • Virtual Reality Applications
  • Location Based Services
  • Navigation Applications
  • Industrial Applications
  • Magnetometry
  • IoT devices
  • Heading
  • Gaming
