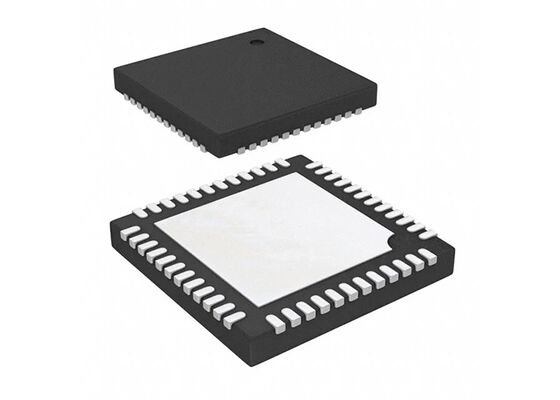

PAC5223QM Integrated Circuit Chip Arm Cortex-M0 Multi-Mode Power Application Controller
The PAC5223QM is part of Active-Semi's comprehensive portfolio of Power Application Controller® (PAC) products, specifically optimized for controlling and powering next-generation smart energy appliances, devices, and equipment. This advanced application controller integrates a 50MHz Arm® Cortex®-M0 32-bit microcontroller core with Active-Semi's proprietary Multi-Mode Power Manager™, Configurable Analog Front End™, and Application Specific Power Drivers™ to create compact microcontroller-based power and general purpose application systems for digital power supplies and motor control applications.
Product Specifications
| Applications |
Smart Energy Appliances, Devices, and Equipment |
| Core Processor |
ARM® Cortex®-M0 |
| Program Memory Type |
FLASH (32KB) |
| Controller Series |
PAC™ |
| RAM Size |
8K x 8 |
| Interface |
I2C, SPI, SWD, UART |
| Number of I/O |
25 |
| Operating Temperature |
-40°C ~ 105°C |
Key Features
Proprietary Multi-Mode Power Manager
- Multi-mode switching supply controller configurable for high-voltage buck SEPIC or AC/DC Flyback topologies
- DC supply up to 70V or line AC input
- 4 linear regulators with power and hibernate management
- Power and temperature monitor, warning, and fault detection
Proprietary Configurable Analog Front End
- 10 analog front end I/O pins
- 3 differential programmable gain amplifiers
- 4 single-ended programmable gain amplifiers
- 10 comparators
- 2 DACs (10-bit and 8-bit)
Proprietary Application Specific Power Drivers
- 3 low-side and 3 high-side gate drivers with 1A gate driving capability
- Configurable delays and fast fault protection
Core Microcontroller Features
- 50MHz Arm Cortex-M0 32-bit microcontroller core
- Fast single cycle 32-bit x 32-bit multiplier
- 24-bit SysTick timer
- Nested vectored interrupt controller (NVIC) with 20 external interrupts
- Wake-up interrupt controller allowing power-saving sleep modes
- Clock-gating allowing low power operation
- 32kB FLASH and 8kB SRAM memory
- 10-bit 1µs ADC with multi-input/multi-sample control engine
- 9 ADC inputs including input from configurable analog front end
I/O and Clock Features
- 3.3V I/Os with 3 general purpose I/Os with tri-state and dedicated analog input to ADC
- True 5V I/Os with 12 general purpose I/Os with tri-state, pull-up and pull-down and dedicated I/O supply
- Configurable as true 5V or 3.3V I/Os
- Flexible clock and PLL from internal 2% oscillator, ring oscillator, external clock, or crystal
Timing and Communication
- 9 timing generators including four 16-bit timers with up to 16 PWM/CC blocks and 7 independent dead-time controllers
- 24-bit watchdog timer (4s or 8s)
- 24-bit real time clock
- 24-bit SysTick timer
- Wake-up timer for sleep modes from 0.125s to 8s
- SPI, I2C, and UART communication interfaces
- SWD debug interface with interface disable function
Applications
- Power Tools
- Garden Tools
- White Goods
- Embedded Speed Controllers
- Motor controllers
