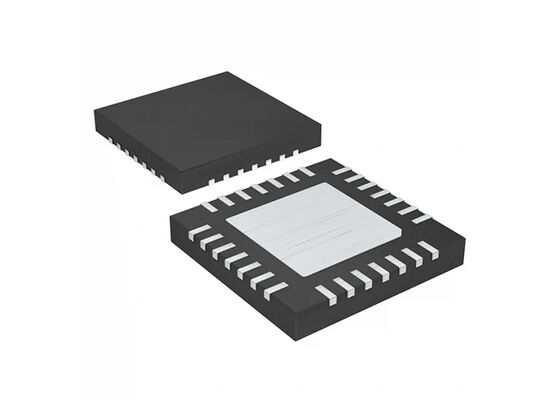

MP6530GR Integrated Circuit Chip 5V to 60V Three-Phase Brushless DC Motor Pre-Driver with Programmable Over-Current Protection

MP6530GR Integrated Circuit Chip 5V to 60V Three-Phase Brushless DC Motor Pre-Driver with Programmable Over-Current Protection
MP6530GR Integrated Circuit Chip 5V to 60V Three-Phase Brushless DC Motor Pre-Driver with Programmable Over-Current Protection

Large Image :  MP6530GR Integrated Circuit Chip 5V to 60V Three-Phase Brushless DC Motor Pre-Driver with Programmable Over-Current Protection

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MP6530GR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-28
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

MP6530GR Integrated Circuit Chip 5V to 60V Three-Phase Brushless DC Motor Pre-Driver with Programmable Over-Current Protection

Description
Part Number: MP6530GR Type:: 3 Phase
Output Current:: 1 A Operating Supply Current:: 950 UA
Minimum Operating Temperature:: - 40 C Maximum Operating Temperature:: + 125 C
Highlight:

5V to 60V Input Voltage Integrated Circuit Chip

,

Three-Phase Brushless DC Motor Gate Driver IC

,

Programmable Over-Current Protection BLDC Motor Driver

MP6530GR Integrated Circuit Chip 5V To 60V Three-Phase Brushless DC Motor Pre-Driver
The MP6530GR is a gate driver IC specifically designed for three-phase brushless DC motor driver applications. This advanced chip can drive three half bridges consisting of 6 N-channel power MOSFETs with voltage support up to 60V.
Product Overview
The MP6530GR utilizes a bootstrap capacitor to generate supply voltage for the high-side MOSFET driver. An integrated trickle-charge circuit ensures sufficient gate driver voltage is maintained even at 100% duty cycle operation. Comprehensive safety features include programmable over-current protection, adjustable dead-time control, UVLO, and thermal shutdown. Available in 28-pin, 9.7mm×6.4mm TSSOP-EP and 4mmx4mm QFN-28 packages with exposed thermal pads.
Technical Specifications
Motor Type Stepper | Multiphase
Motor Type - AC, DC Brushless DC (BLDC)
Function Controller - Speed
Output Configuration Pre-Driver - Half Bridge (3)
Technology Power MOSFET
Applications General Purpose
Current - Output 1A
Voltage - Supply 5V ~ 60V
Voltage - Load 5V ~ 60V
Operating Temperature -40°C ~ 125°C (TJ)
Key Features
  • Wide 5V to 60V Input Voltage Range
  • Bootstrap Gate Driver with Trickle-Charge Circuit Supports 100% Duty Cycle Operation
  • Low-Power Sleep Mode for Battery-Powered Applications
  • Programmable Over-Current Protection of External MOSFETs
  • Adjustable Dead-Time Control to Prevent Shoot-Through
  • Thermal Shutdown and UVLO Protection
  • Fault Indication Output
  • Thermally Enhanced Surface-Mount Package
Applications
  • Three-Phase Brushless DC Motors and Permanent Magnet Synchronous Motors
  • Power Drills
  • Impact Drivers
  • E-Bike
