SC431AVSNT1G Integrated Circuit Chip Voltage Reference IC with 2.5V Programmable Precision References and 50 PPM/℃ Temperature Coefficient

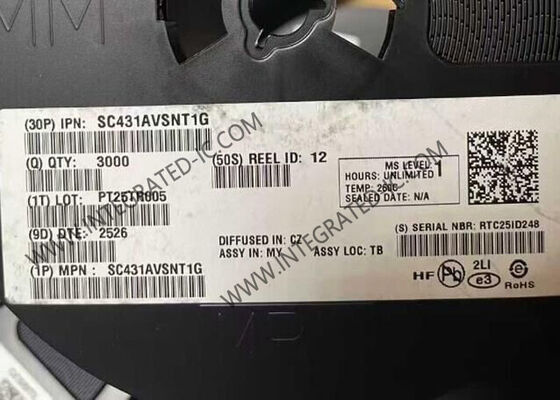

Large Image : SC431AVSNT1G Integrated Circuit Chip Voltage Reference IC with 2.5V Programmable Precision References and 50 PPM/℃ Temperature Coefficient

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	SC431AVSNT1G

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SOT-23-3
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

SC431AVSNT1G Integrated Circuit Chip Voltage Reference IC with 2.5V Programmable Precision References and 50 PPM/℃ Temperature Coefficient

Description

Part Number:	SC431AVSNT1G	Initial Accuracy:	1 %
Shunt Current - Max:	100 MA	Temperature Coefficient:	50 PPM/℃
Operating Temperature:	-40°C ~ 125°C (TA)	Reference Type:	Shunt Adjustable Precision References
Highlight:	2.5V Programmable Integrated Circuit Chip , 50 PPM/℃ Temperature Coefficient Voltage Reference IC , 100 mA Shunt Current Programmable Precision References

SC431AVSNT1G Integrated Circuit Chip Voltage Reference IC 2.5V Programmable Precision References

The SC431AVSNT1G is a three-terminal programmable shunt regulator diode. This monolithic IC voltage reference operates as a low temperature coefficient zener that is programmable from Vref to 36 V using two external resistors.

Specifications

Reference Type	Shunt
Output Type	Adjustable
Voltage - Output (Min/Fixed)	2.5V
Voltage - Output (Max)	36 V
Current - Output	40 µA
Tolerance	±1%
Temperature Coefficient	50ppm/°C Typical
Current - Cathode	100 mA
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23-3 (TO-236)

Key Features

Programmable Output Voltage to 36 V
Low Minimum Operating Current: 40 µA, Typ @ 25°C
Voltage Reference Tolerance: ±0.5%, Typ @ 25°C
Low Dynamic Output Impedance, 0.22 Typical
Sink Current Capability of 40 µA to 100 mA
Equivalent Full-Range Temperature Coefficient of 50 ppm/°C Typical
Temperature Compensated for Operation over Full Rated Operating Temperature Range

Typical Applications

Voltage Adapters
Switching Power Supply
Precision Voltage Reference
Charger
Instrumentation
