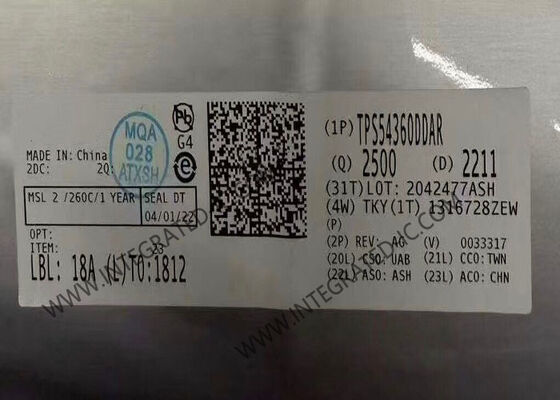

TPS54360DDAR Integrated Circuit Chip 60V 3.5A Step-Down DC/DC Converter with Eco-Mode

TPS54360DDAR Integrated Circuit Chip 60V 3.5A Step-Down DC/DC Converter with Eco-Mode
TPS54360DDAR Integrated Circuit Chip 60V 3.5A Step-Down DC/DC Converter with Eco-Mode

Large Image :  TPS54360DDAR Integrated Circuit Chip 60V 3.5A Step-Down DC/DC Converter with Eco-Mode

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS54360DDAR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SO-PowerPAD-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

TPS54360DDAR Integrated Circuit Chip 60V 3.5A Step-Down DC/DC Converter with Eco-Mode

Description
Part Number: TPS54360DDAR Output Voltage:: 800 MV To 58.8 V
Output Current:: 3.5 A Number Of Outputs:: 1 Output
Input Voltage - Min:: 4.5 V Input Voltage - Max:: 60 V
Highlight:

60V Input Integrated Circuit Chip

,

3.5A Output DC/DC Converter

,

Eco-Mode Step-Down Regulator

TPS54360DDAR Integrated Circuit Chip
60V 3.5A Step-Down DC/DC Converter With Eco-Mode™
The TPS54360DDAR is a 60-V, 3.5-A step-down regulator featuring an integrated high-side MOSFET. This device withstands load dump pulses up to 65 V per ISO 7637 standards. Current mode control enables simple external compensation and flexible component selection. A low ripple pulse skip mode reduces no-load supply current to 146 μA, while shutdown supply current drops to 2 μA when the enable pin is pulled low.
Technical Specifications
Function Step-Down
Output Configuration Positive
Topology Buck, Split Rail
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 60V
Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 58.8V
Current - Output 3.5A
Frequency - Switching 100kHz ~ 2.5MHz
Synchronous Rectifier No
Operating Temperature -40°C ~ 150°C (TJ)
Key Features
4.5-V to 60-V (65-V Abs Max) Input Range
3.5-A Continuous Current, 4.5-A Minimum Peak Inductor Current Limit
Current Mode Control DC/DC Converter
92-mΩ High-Side MOSFET
High Efficiency at Light Loads with Pulse Skipping Eco-mode™
Low Dropout at Light Loads with Integrated BOOT Recharge FET
146-μA Operating Quiescent Current
2-μA Shutdown Current
100-kHz to 2.5-MHz Fixed Switching Frequency
Synchronizes to External Clock
Adjustable UVLO Voltage and Hysteresis
Internal Soft Start
Accurate Cycle-by-Cycle Current Limit
Thermal, Overvoltage, and Frequency Foldback Protection
0.8 V 1% Internal Voltage Reference
8-Terminal HSOIC with PowerPAD™ Package
-40°C to 150°C TJ Operating Range
Applications
12V, 24V and 48V Industrial, Automotive and Communications Power Systems
