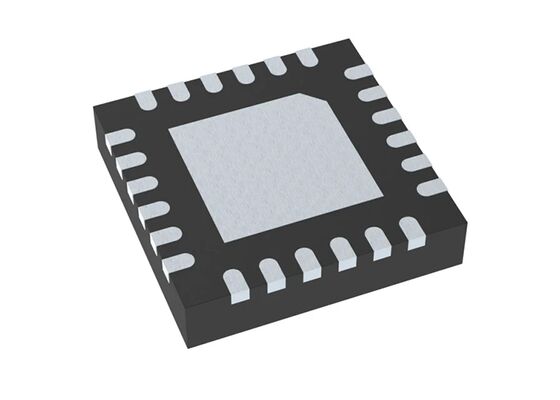

BQ24259RGER I2C Controlled 2A Single Cell USB Charger Integrated Circuit Chip for Battery Management

BQ24259RGER I2C Controlled 2A Single Cell USB Charger Integrated Circuit Chip for Battery Management
BQ24259RGER I2C Controlled 2A Single Cell USB Charger Integrated Circuit Chip for Battery Management

Large Image :  BQ24259RGER I2C Controlled 2A Single Cell USB Charger Integrated Circuit Chip for Battery Management

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: BQ24259RGER
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: VQFN-24
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

BQ24259RGER I2C Controlled 2A Single Cell USB Charger Integrated Circuit Chip for Battery Management

Description
Part Number: BQ24259RGER Battery Type:: Lithium-ion, Lithium Polymer
Output Voltage:: 4.55 V To 5.5 V Output Current:: 2 A
Operating Supply Voltage:: 6.2 V Operating Supply Current:: 3.5 MA
Highlight:

I2C Controlled USB Charger

,

2A Output Current Integrated Circuit Chip

,

Single Cell Battery Management IC

BQ24259RGER Integrated Circuit Chip I2C Controlled 2A Single Cell USB Charger
The BQ24259RGER is a highly-integrated switch-mode battery charge management and system power path management device designed for single-cell Li-Ion and Li-polymer batteries in smartphone and tablet applications. Its low impedance power path optimizes switch-mode operation efficiency, reduces battery charging time, and extends battery life during discharging. The I2C serial interface with charging and system settings provides a truly flexible solution.
Technical Specifications
Battery Chemistry Lithium Ion/Polymer
Number of Cells 1
Current - Charging Constant - Programmable
Fault Protection Over Current, Over Temperature, Over Voltage
Charge Current - Max 2A
Battery Pack Voltage 4.2V
Voltage - Supply (Max) 6.2V
Interface I2C, USB
Operating Temperature -40°C ~ 85°C (TA)
Key Features
  • 90% High Efficiency Switch Mode 2-A Charger
  • 3.9-V to 6.2-V Single Input USB-Compliant Charger with 6.4-V Over-Voltage Protection
  • Input voltage and current limit supports USB 2.0 and USB 3.0
  • Input Current Limit: 100 mA, 150 mA, 500 mA, 900 mA, 1 A, 1.5 A, 2 A
  • USB OTG with Adjustable output 4.55 V to 5.5 V at 1 A or 1.5 A
  • Fast OTG Startup (22 ms Typical)
  • 90% 5-V Boost Mode Efficiency
  • Accurate ±15% Hiccup Mode Overcurrent Protection
  • Narrow VDC (NVDC) Power Path Management
  • Instant System On with No Battery or Deeply Discharged Battery
  • Ideal Diode Operation in Battery Supplement Mode
  • 1.5-MHz Switching Frequency for Low Profile 1.2mm Inductor
  • I2C port for optimal system performance and status reporting
  • Autonomous Battery Charging with or without Host Management
  • High Accuracy: ±0.5% Charge Voltage, ±7% Charge Current, ±7.5% Input Current, ±3% Output Voltage Regulation
  • High Integration: Power Path Management, Synchronous Switching MOSFETs, Integrated Current Sensing
  • Safety Features: Battery Temperature Sensing, Charging Safety Timer, Thermal Regulation, Over-Voltage Protection
  • Charge Status Outputs for LED or Host Processor
  • Maximum power tracking capability by input voltage regulation
  • 20-µA Low Battery Leakage Current and Support Shipping Mode
  • 4-mm x 4-mm VQFN-24 Package
Applications
  • Tablet PC
  • Smart Phone
  • Internet Devices
  • Portable Audio Speaker
