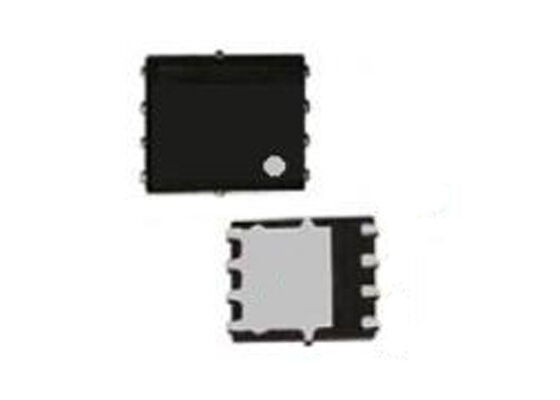

PTQ45P02 20V 45A P-Channel Advanced Power MOSFET Transistor Integrated Circuit Chip

Large Image : PTQ45P02 20V 45A P-Channel Advanced Power MOSFET Transistor Integrated Circuit Chip

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	PTQ45P02

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	PDFN3333
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

PTQ45P02 20V 45A P-Channel Advanced Power MOSFET Transistor Integrated Circuit Chip

Description

Part Number:	PTQ45P02	Type Of Control Channel:	P-Channel
Pd - Maximum Power Dissipation:	35 W	Vds - Maximum Drain-Source Voltage:	20 V
Id - Maximum Drain Current:	45 A	Qg - Total Gate Charge:	55 NC
Highlight:	20V P-Channel MOSFET transistor , Integrated Circuit Chip with warranty , Power MOSFET transistor 20V

PTQ45P02 Integrated Circuit Chip 20V P-Channel Advanced Power MOSFET Transistor

PTQ45P02 is a 20V/45A P-Channel Advanced Power MOSFET Transistor designed for high-performance power management applications.

Specifications

Parameter	Value
Type of Transistor	MOSFET
Type of Control Channel	P-Channel
Pd - Maximum Power Dissipation	35 W
Vds - Maximum Drain-Source Voltage	20 V
Vgs - Maximum Gate-Source Voltage	12 V
Id - Maximum Drain Current	45 A
Tj - Maximum Junction Temperature	150 °C
Vgs(th) - Maximum Gate-Threshold Voltage	1 V
Qg - Total Gate Charge	55 nC
tr - Rise Time	42 nS
Coss - Output Capacitance	577 pF

Key Features

P-Channel Advanced Power MOSFET
1.8V Logic Level Control
PDFN3333 SMD Package

Applications

High Side Load Switch, Battery Switch. Optimized for power management applications in portable products including Aeromodelling, Power banks, Brushless motors, Main boards, and other electronic systems.
