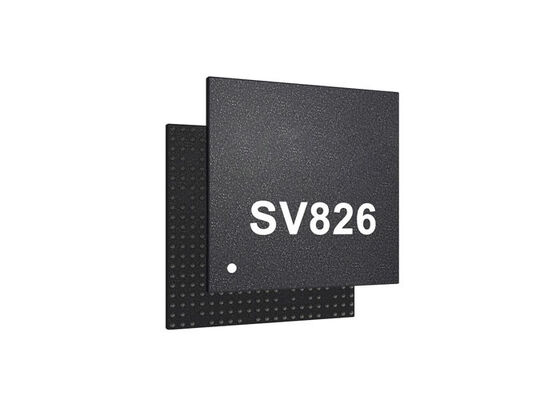

SV826 AI Processor Chip AI SoC 1.5 TOPS Dual-Core CPU AI System On Chip
The SV826 AI SoC integrates a second-generation self-developed NPU delivering 1.5 TOPS AI computing power. It features smart H.265+ encoding technology and supports 4K@30fps UHD video encoding and decoding with 3-channel camera inputs.
Product Overview
SV826 AI SoC integrates the second-generation self-developed NPU, providing 1.5 TOPS AI computing power. It adopts smart H.265+ encoding technology and supports 4K@30fps UHD video encoding and decoding, 3-ch camera inputs.
SV826 integrates the professional image signal processor (ISP) for video security markets and supports the 2F or 3F WDR and adaptive de-noising technology, which provides excellent image effects in backlight and low-light environments.
Technical Specifications
Chip Series: SV826
CPU: Dual-Core CPU
NPU: 1.5 TOPS
Camera: DVP and MIPI-CSI2 three channel video inputs
ISP: 4K@30fps, supporting 3F-WDR and 3DNR
Video Codec: H.264/H.265 8MP@30fps
Display: FHD RGB/MCU/BT.656/BT.1120/LVDS/MIPI DSI
Package: BGA351, 13 mm x 13 mm
Key Features
- Integrates the second-generation self-developed NPU
- Providing 1.5 TOPS AI computing power
- Memory Support:
- 32-bit DDR3/DDR3L/LPDDR2/LPDDR3
- SPI NOR/SPI NAND/eMMC
- SD3.0
- Adopts smart H.265+ encoding technology
- Supports 4K@30fps UHD video encoding and decoding
- Integrates the professional image signal processor (ISP) for video security markets
- Supports the 2F or 3F WDR and adaptive de-noising technology
Application Scenarios
SV826 supports intelligent application scenarios such as face recognition and detection, human recognition, license plate recognition, vehicle model recognition, video structuring, and intelligent behavior analysis.
