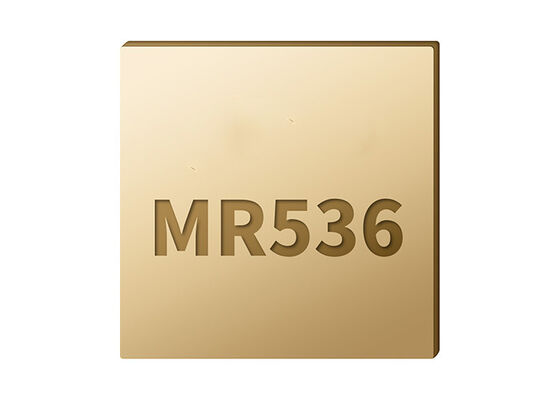

MR536MX-N3Z AI Processor Chip
Integrated Multiple High-Performance Robotic AI SoC Chip
Product Overview
The MR536MX-N3Z chip integrates multiple high-performance computing units including a Quad-Core Arm® Cortex®-A55 CPU, NPU, and MCU. This advanced heterogeneous multi-core processor architecture delivers superior scalability and control power for robotic applications. The NPU specifically supports Transformer models and over 130 operators, significantly enhancing cognitive capabilities.
Key Specifications
- CPU: Quad-Core Arm Cortex-A55 CPU, up to 1.8GHz
- MCU: RISC-V XuanTie E907, up to 600MHz
- NPU: 3 Tops computing power
- Memory: Supports DDR3/DDR3L/LPDDR3, DDR4/LPDDR4/LPDDR4x with capacity up to 8 GB
- Video Encoder: H.264 - 4K@25fps, JPEG - 8192*8192
- Camera: Parallel CSI - 8/10/12/16-bit width, MIPI CSI - 2*4-lane/4*2-lane/4+2*2-lane
- Software System: Tina Linux, FreeRTOS
Interface Support
Comprehensive interface support including PCIe 2.1/USB 3.1, USB 2.0 DRD & HOST, SDIO 3.0, GMAC *1, UART *17, TWI *9, SPI *6, PWM *34, IR RX *5, IR TX *1, LEDC, GPADC *31, TPADC *4, LRADC *1, GPIO *215
Key Benefits
- Integrated multiple computing units including Arm Cortex-A55 CPU, NPU, and MCU
- Supports H.264 4K@25fps video encoding
- Comprehensive interface support including USB, SDIO, GMAC, SPI, TWI, UART, GPADC, LRADC, and PWM
- NPU delivers maximum computing power of 3Tops, supports Transformer models, and covers all operators (130+)
Application Areas
This complete and easy-to-use robot matching solution is ideal for sweeping robots, lawn mowing robots, logistics robots, service robots, toy robots, and various other robotic applications.
