IRF540NSTRLPBF Power MOSFET 100V Single N-Channel Transistor with 33A Continuous Drain Current and 44mOhm Resistance

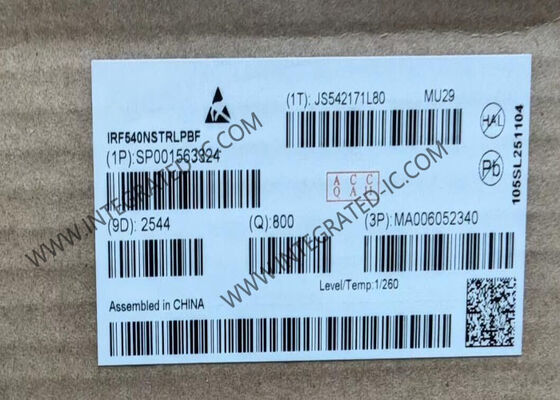

Large Image : IRF540NSTRLPBF Power MOSFET 100V Single N-Channel Transistor with 33A Continuous Drain Current and 44mOhm Resistance

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	IRF540NSTRLPBF

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TO-263-3
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

IRF540NSTRLPBF Power MOSFET 100V Single N-Channel Transistor with 33A Continuous Drain Current and 44mOhm Resistance

Description

Part Number:	IRF540NSTRLPBF	Package / Case:	D2PAK-3 (TO-263-3)
Vds - Drain-Source Breakdown Voltage:	100 V	Id - Continuous Drain Current:	33 A
Rds On - Drain-Source Resistance:	44 MOhms	Qg - Gate Charge:	47.3 NC
Highlight:	100V Drain-Source Voltage Power MOSFET , 33A Continuous Drain Current MOSFET Transistor , 44mOhm Drain-Source Resistance N-Channel MOSFET

IRF540NSTRLPBF Integrated Circuit Chip 100V Single N-Channel Power MOSFET Transistors

IRF540NSTRLPBF is a 100V, Single N-Channel Power MOSFET Transistor in a TO-220 package, designed for high-performance power applications.

Product Specifications

Parameter	Value
Series	HEXFET®
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	33A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	44mOhm @ 16A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	71 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1960 pF @ 25 V
Power Dissipation (Max)	130W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK
Package / Case	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB

Key Features

Advanced Process Technology
Ultra Low On-Resistance
Dynamic dv/dt Rating
175°C Operating Temperature
Fast Switching
Fully Avalanche Rated
Lead-Free

Primary Application

LED strips and signage
