XR872AT Wireless Communication Module with Arm Cortex-M4F CPU 2.4G WLAN and QFN52 Package

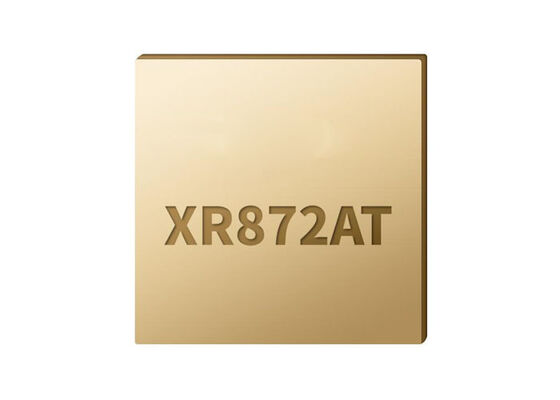

Large Image : XR872AT Wireless Communication Module with Arm Cortex-M4F CPU 2.4G WLAN and QFN52 Package

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	XR872AT

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QFN-52
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

XR872AT Wireless Communication Module with Arm Cortex-M4F CPU 2.4G WLAN and QFN52 Package

Description

Part Number:	XR872AT	CPU:	Arm Cortex-M4F, Up To 384MHz
Power:	1.8 ~ 5.5V Vbat	RAM:	416KB
WLAN:	2.4G, IEEE 802.11b/g/n	Package:	QFN52, 6mm X 6mm
Highlight:	Arm Cortex-M4F CPU Wireless Communication Module , 2.4G WLAN Wireless IoT SoC , QFN52 Package XR872AT

XR872AT Wireless Communication Module High-Integration Wireless IoT SoC QFN52

The XR872AT is a high-integration wireless IoT SoC that integrates Arm® Cortex®-M4F CPU, low-power 802.11b/g/n system, multiple ADC & DAC interfaces, image encoding unit, power management unit, and sip 4MB PSRAM. This versatile module is designed for widespread use in AIoT products.

Technical Specifications

Parameter	Specification
CPU	Arm Cortex-M4F, up to 384MHz
WLAN	2.4G, IEEE 802.11b/g/n
Package	QFN52, 6mm x 6mm, 0.4p
Power	1.8 ~ 5.5V Vbat
RAM	416KB
ROM	160KB
PSRAM	SiP 4MB OPI PSRAM. Also can be expanded externally
QPI+XIP Flash	1
UART	3
SPI	2
I2C	2
PWM	8
DAC	1
ADC	7
SDIO	1
IR	TX 1, RX 1
Audio Codec	24-bit ADC + 24-bit DAC + Linein I2S 1, DMIC 1
Camera Input	JPEG - 1920 x 1088 JPEG or 640x480@30fps
Wakeup IO	9
GPIO	33
Software System	FreeRTOS AliOS-Things OpenHarmonyOS

Key Features

Arm Cortex-M4F CPU for high-performance processing
WLAN 2.4G support for wireless connectivity
Comprehensive audio system integration
JPEG video encoding capabilities
