CYPD3125-40LQXIT Integrated Circuit Chip EZ-PD CCG3 USB Type-C Controller with USB Power Delivery 3.0 ARM Cortex-M0 Processor and 128-KB Flash Memory

Large Image : CYPD3125-40LQXIT Integrated Circuit Chip EZ-PD CCG3 USB Type-C Controller with USB Power Delivery 3.0 ARM Cortex-M0 Processor and 128-KB Flash Memory

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	CYPD3125-40LQXIT

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QFN-40
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

CYPD3125-40LQXIT Integrated Circuit Chip EZ-PD CCG3 USB Type-C Controller with USB Power Delivery 3.0 ARM Cortex-M0 Processor and 128-KB Flash Memory

Description

Part Number:	CYPD3125-40LQXIT	Standard::	USB-C 3.0
Data Rate::	1 Mb/s	Supply Voltage - Min::	2.7 V
Supply Voltage - Max::	21.5 V	Operating Supply Current::	25 MA
Highlight:	USB Power Delivery 3.0 Integrated Circuit Chip , ARM Cortex-M0 Processor USB Type-C Controller , 128-KB Flash Memory EZ-PD CCG3

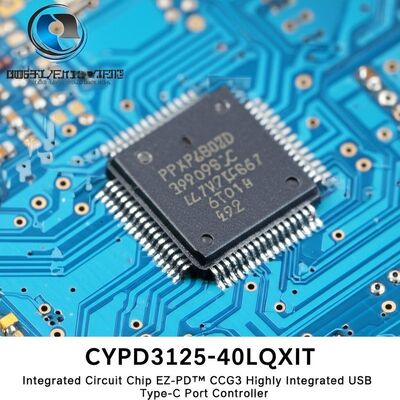

CYPD3125-40LQXIT Integrated Circuit Chip EZ-PD™ CCG3 Highly Integrated USB Type-C Port Controller

The CYPD3125-40LQXIT EZ-PD™ CCG3 is a highly integrated USB Type-C controller that complies with the latest USB Type-C and Power Delivery standards. This controller provides a complete USB Type-C and USB-Power Delivery port control solution for notebooks, dongles, monitors, docking stations, and power adapters.

Technical Specifications

Applications	USB Type C
Core Processor	ARM® Cortex®-M0
Program Memory Type	FLASH (128kB)
RAM Size	8K x 8
Interface	I2C, SPI, UART/USART, USB
Number of I/O	20
Voltage - Supply	2.7V ~ 5.5V
Operating Temperature	-40°C ~ 85°C (TA)

Key Features

Type-C and USB-PD Support with integrated USB Power Delivery 3.0
Integrated USB-PD BMC transceiver and VCONN FETs
Configurable resistors RA, RP, and RD
Dead Battery Detection support
Integrated fast role swap and extended data messaging
Supports one USB Type-C port
Integrated Hardware based overcurrent protection (OCP) and overvoltage protection (OVP)
32-bit MCU Subsystem with 48-MHz ARM Cortex-M0 CPU
128-KB Flash and 8-KB SRAM
Hardware Crypto block enables Authentication
Full-Speed USB Device Controller supporting Billboard Device Class
Integrated timers and counters for USB-PD protocol requirements
Four run-time reconfigurable serial communication blocks (SCBs)
Integrated oscillator eliminating the need for external clock
2.7 V to 21.5 V operation
2x Integrated dual-output gate drivers for external VBUS FET switch control
Independent supply voltage pin for GPIO (1.71 V to 5.5 V signaling)
Low power modes: Reset: 30 µA, Deep Sleep: 30 µA, Sleep: 3.5 mA
System-Level ESD Protection on CC, SBU, DPLUS, DMINUS and VBUS pins
± 8-kV Contact Discharge and ±15-kV Air Gap Discharge (IEC61000-4-2 level 4C)
Available in 40-pin QFN, 32-pin QFN, and 42-ball CSP packages
Supports industrial temperature range (-40 °C to +105 °C)
