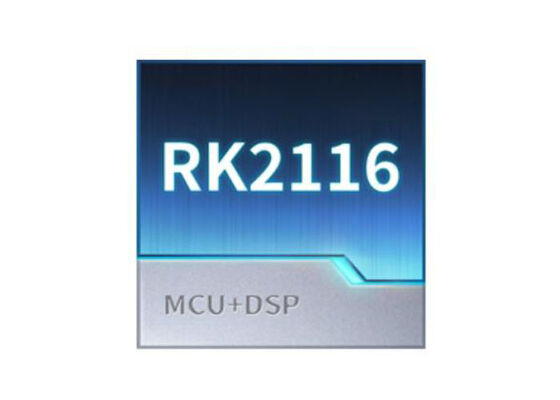

RK2116G AI Processor Chip
High Performance Dual-Core HiFi4 DSP Processor in QFP128L Package
Product Overview
The RK2116G is a high-performance dual-core HiFi4 DSP intelligent voice processor, specifically engineered for smart voice interaction, audio input/output processing, and various digital multimedia applications.
Technical Specifications
| CPU |
RISC-V, up to 300MHz |
| Memory Interface |
16MB PSRAM (RK2116G) |
| DSP |
2xHIFI4 |
| Audio Interfaces & Processing |
8xSAI / 8xPDM / SPDIF RX / SPDIF TX |
| Peripheral Interfaces |
USB 2.0 OTG / 2xSDIO / CAN 2.0B / 4xUART / 4xSPI / 7xI2C / 4xSARADC / 8xPWM / RMII |
| Package |
QFP128L (14mm x 14mm) |
Key Features
- N320 RISC-V processor with 16KB I-Cache and 16KB D-Cache
- Standard 2-wire cJTAG debug interface support
- Dual core HiFi4 DSP processor (DSP0, DSP1)
- Internal SRAM: 768KB System SRAM + 16KB PMU SRAM
- High-performance audio processor chip supporting Dolby and DTS
- Capable of running third-party audio processing algorithms
- 8 SAI units with 51 dedicated audio I/O pins
- Flexible audio input/output configuration
- Multi-channel hardware ASRC
Architecture Overview
Functional Block Diagram of RK2116G
