TCAN1051HGVDR Integrated Circuit Chip 5Mbps Fault Protected CAN Transceiver with 16 kV ESD Protection SOIC8

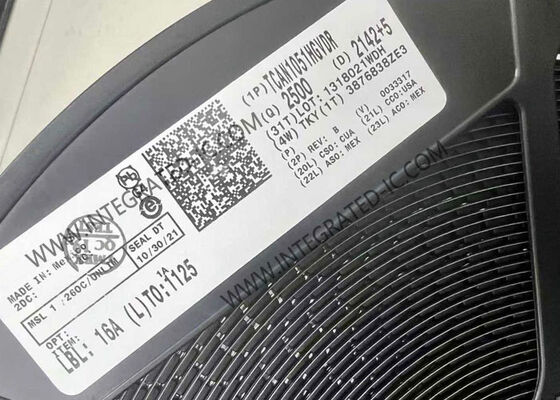

Large Image : TCAN1051HGVDR Integrated Circuit Chip 5Mbps Fault Protected CAN Transceiver with 16 kV ESD Protection SOIC8

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	TCAN1051HGVDR

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SOIC-8
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

TCAN1051HGVDR Integrated Circuit Chip 5Mbps Fault Protected CAN Transceiver with 16 kV ESD Protection SOIC8

Description

Part Number:	TCAN1051HGVDR	Data Rate:	5 Mb/s
Operating Supply Current:	45 MA	ESD Protection:	16 KV
Pd - Power Dissipation:	124 MW	Operating Supply Voltage:	4.5 V To 5.5 V
Highlight:	5Mbps CAN Transceiver , Fault Protected Integrated Circuit Chip , 16 kV ESD Protection TCAN1051HGVDR

TCAN1051HGVDR Integrated Circuit Chip 5Mbps Fault Protected CAN Transceiver SOIC8

The TCAN1051HGVDR is a fault-protected CAN transceiver with flexible data-rate capability, designed for data rates up to 5 Mbps.

Specifications

Type	Transceiver
Protocol	CANbus
Number of Drivers/Receivers	1/1
Duplex	Half
Receiver Hysteresis	120 mV
Data Rate	5Mbps
Voltage - Supply	4.5V ~ 5.5V
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC

Key Features

I/O Voltage range supports 3.3 V and 5 V MCUs
Ideal passive behavior when unpowered
Bus and logic terminals are high impedance (no load)
Power up/down with glitch free operation on bus and RXD output
HBM ESD protection: ±16 kV
IEC ESD protection up to ±15 kV
Bus Fault protection: ±58 V (non-H variants) and ±70 V (H variants)
Undervoltage protection on VCC and VIO (V variants only) supply terminals
Driver dominant time out (TXD DTO) - Data rates down to 10 kbps
Thermal shutdown protection (TSD)
Receiver common mode input voltage: ±30 V
Typical loop delay: 110 ns
Junction temperatures from -55°C to 150°C

Applications

All devices support highly loaded CAN networks including heavy machinery ISOBUS applications (ISO 11783), industrial automation, control, sensors and drive systems, building, security and climate control automation, telecom base station status and control. Compatible with CAN Bus standards such as CANopen, DeviceNet, NMEA2000, ARNIC825, ISO11783, and CANaerospace.
