TC1-33-75G2 Integrated Circuit Chip RF Transformer 5MHz to 3GHz 75 Ohms Surface Mount SMD-6

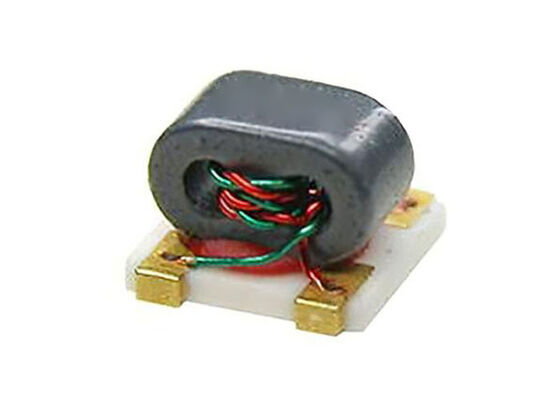

Large Image : TC1-33-75G2 Integrated Circuit Chip RF Transformer 5MHz to 3GHz 75 Ohms Surface Mount SMD-6

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	TC1-33-75G2

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SMD-6
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

TC1-33-75G2 Integrated Circuit Chip RF Transformer 5MHz to 3GHz 75 Ohms Surface Mount SMD-6

Description

Part Number:	TC1-33-75G2	Frequency Range:	5 MHz To 3 GHz
Primary Impedance:	75 Ohms	Maximum DC Current:	30 MA
Power Rating:	250 MW	Return Loss (Min):	9.59dB
Highlight:	5MHz to 3GHz RF Transformer , 75 Ohms Integrated Circuit Chip , Surface Mount SMD-6

TC1-33-75G2 Integrated Circuit Chip 5MHz To 3GHz RF Transformer SMD-6

TC1-33-75G2 is a 1:1 CORE and WIRE transformer operating at frequencies ranging from 5MHz to 3000MHz.

Specifications

Parameter	Value
Frequency Range	5MHz ~ 3GHz
Impedance - Unbalanced/Balanced	75 / 75Ohm
Phase Difference	4°
Insertion Loss (Max)	3dB
Return Loss (Min)	9.59dB
Package / Case	6-SMD (5 Leads), Flat Lead
Mounting Type	Surface Mount

Key Features

Suitable for tin/lead and RoHS solder systems
Wideband, 5 to 3000 MHz
Balanced transmission line
Good return loss, 20 dB typ. at 1 dB band
Excellent amplitude unbalance, 0.3 dB typ. and phase unbalance, 3 deg typ. in 1 dB bandwidth
Aqueous washable

Applications

Balanced to unbalanced transformation
Push-pull amplifiers
PCS/DCS
Cable TV
Cellular

Product Image
