OPA2180IDR 36V Zero-Drift Operational Amplifier Integrated Circuit Chip with Rail-to-Rail Output and 2 MHz Gain Bandwidth SOIC8

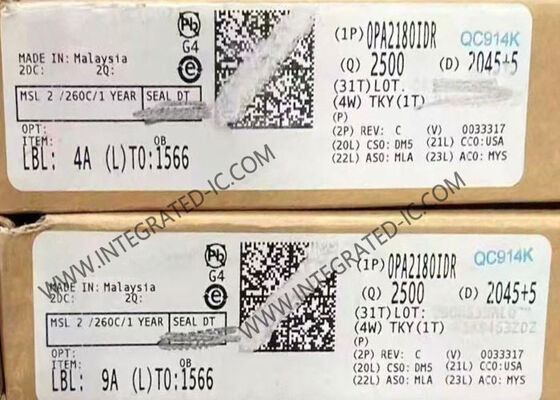

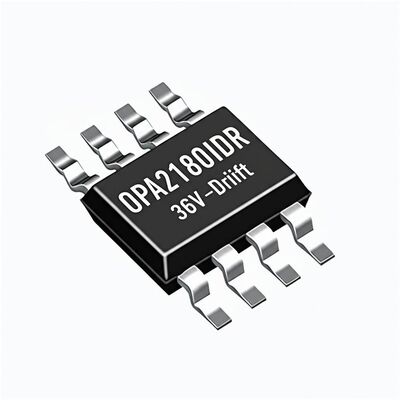

Large Image : OPA2180IDR 36V Zero-Drift Operational Amplifier Integrated Circuit Chip with Rail-to-Rail Output and 2 MHz Gain Bandwidth SOIC8

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	OPA2180IDR

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SOIC-8
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

OPA2180IDR 36V Zero-Drift Operational Amplifier Integrated Circuit Chip with Rail-to-Rail Output and 2 MHz Gain Bandwidth SOIC8

Description

Part Number:	OPA2180IDR	GBP - Gain Bandwidth Product:	2 MHz
SR - Slew Rate:	800 MV/us	Vos - Input Offset Voltage:	75 UV
Ib - Input Bias Current:	1.7 NA	CMRR - Common Mode Rejection Ratio:	114 DB
Highlight:	36V Zero-Drift Operational Amplifier , Rail-to-Rail Output Integrated Circuit Chip , 2 MHz Gain Bandwidth SOIC8

OPA2180IDR Integrated Circuit Chip 36V Zero-Drift Operational Amplifiers SOIC8

The OPA2180IDR is a low-noise, rail-to-rail output, 36V zero-drift operational amplifier delivering exceptional precision with low offset voltage (75 µV) and near-zero drift over time and temperature. The input common-mode range includes the negative rail, supporting single or dual supplies from 4V to 36V (±2V to ±18V).

Specifications

Parameter	Value
Amplifier Type	Zero-Drift
Number of Circuits	2
Output Type	Rail-to-Rail
Slew Rate	0.8V/µs
Gain Bandwidth Product	2 MHz
Input Bias Current	250 pA
Input Offset Voltage	15 µV
Supply Current	450µA (x2 Channels)
Output Current per Channel	18 mA
Minimum Supply Voltage	4.5 V
Maximum Supply Voltage	36 V
Operating Temperature	-40°C to 105°C
Mounting Type	Surface Mount
Package/Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC

Key Features

Low Offset Voltage: 75 μV (Maximum)
Zero-Drift: 0.1 μV/°C
Low Noise: 10 nV/√Hz
Very Low 1/f Noise
Excellent DC Precision:
- PSRR: 126 dB
- CMRR: 114 dB
- Open-Loop Gain (AOL): 120 dB
Quiescent Current: 525 μA (Maximum)
Wide Supply Range: ±2 V to ±18 V
Rail-to-Rail Output: Input Includes Negative Rail
Low Bias Current: 250 pA (Typical)
RFI Filtered Inputs
MicroSIZE Packages

Applications

Bridge Amplifiers
Strain Gauges
Test Equipment
Transducer Applications
Temperature Measurement
Electronic Scales
Medical Instrumentation
Resistor Thermal Detectors
Precision Active Filters

Related Electronic Components

Part Number	Package
LS1026AXE8P1A	780-FCPBGA
LS1026ASE8T1A	780-FCPBGA
LS1046AXE8P1A	780-FCPBGA
LS1046AXN8MQA	780-FCPBGA
LS1026AXE8T1A	780-FCPBGA
LS1046ASE8T1A	780-FCPBGA
LS1026ASE8P1A	780-FCPBGA
LS1026AXN8MQA	780-FCPBGA
LS1026ASE8MQA	780-FCPBGA
LS1046ASE8P1A	780-FCPBGA

Frequently Asked Questions

Are your products original?

Yes, all products are original. New original import is our purpose.

Which Certificates do you have?

We are ISO 9001:2015 Certified Company and member of ERAI.

Can you support small quantity order or sample? Is the sample free?

Yes, we support sample orders and small orders. Sample cost varies according to your order or project requirements.

How to ship my order? Is it safe?

We use express carriers such as DHL, FedEx, UPS, TNT, and EMS. We can also use your suggested forwarder. Products are securely packaged, and we assume responsibility for any damage to your order.

What about the lead time?

We can ship stock parts within 5 working days. For items not in stock, we will confirm the lead time based on your order quantity.
