QTM-527-2-LGA280B-TR-030-0 5G Module QTM527 mmWave Antenna Module for 5G Fixed Wireless Access CPE

Large Image : QTM-527-2-LGA280B-TR-030-0 5G Module QTM527 mmWave Antenna Module for 5G Fixed Wireless Access CPE

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	QTM-527-2-LGA280B-TR-030-0

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	BGA
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

QTM-527-2-LGA280B-TR-030-0 5G Module QTM527 mmWave Antenna Module for 5G Fixed Wireless Access CPE

Description

Part Number:

QTM-527-2-LGA280B-TR-030-0

Cellular Modem-RF Specs:

800MHz Bandwidth (mmWave)

Cellular Technology:

5G NR, MmWave

Type:

MmWave Antenna Module

Highlight:

800MHz bandwidth 5G Module

64 dual polarization antenna elements mmWave Antenna Module

Integrated 5G NR radio transceiver 5G Fixed Wireless Access CPE

QTM-527-2-LGA280B-TR-030-0 5G Module

QTM527 mmWave Antenna Module for 5G Fixed Wireless Access CPE

Product Overview

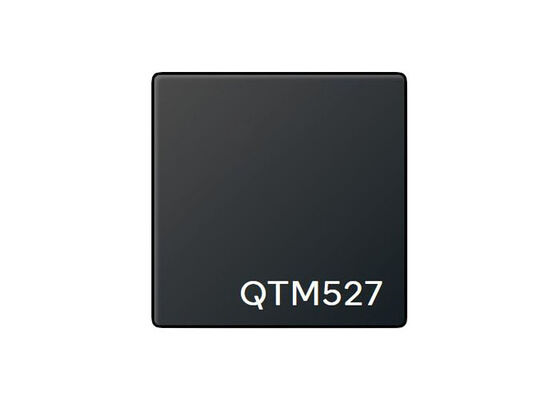

The QTM-527-2-LGA280B-TR-030-0 is a fully-integrated, extended range mmWave antenna module designed specifically for 5G fixed wireless access customer premise equipment (CPE).

When paired with the Snapdragon™ X55 5G modem, this module delivers a comprehensive modem-to-antenna system for flexible, cost-effective, high-performance 5G mmWave customer-premises equipment designs.

Technical Specifications

Cellular Modem-RF Specs: 800 MHz bandwidth (mmWave)
Performance Enhancement Technologies: Dual-layer polarization in downlink and uplink (mmWave), Beam tracking (mmWave), Beam forming (mmWave), Beam steering (mmWave)
Cellular Technology: 5G NR, mmWave

Key Features

First Qualcomm® millimeter-wave high-power antenna module for customer premises equipment (CPE)
64 dual polarization antenna elements capable of transmitting power of more than 40dBm (Power Class 1)
Integrated 5G NR radio transceiver, power management IC, RF front-end components, and phased antenna array
Support for up to 800 MHz of bandwidth in the 24.25-27.5, 26.5-29.5 GHz, 27.5-28.35 GHz, and/or 37-40GHz mmWave spectrum bands
Up to 2x2 MIMO with dual-layer polarization in both downlink and uplink
Support for beam forming, beam steering, and beam tracking for bi-directional mobile mmWave communication

Applications

Designed for 5G fixed wireless access customer premise equipment (CPE).
