AQG22205 Integrated Circuit Chip 75V to 264V 2A Solid State Photo-Coupled Relay with Snubber Circuit

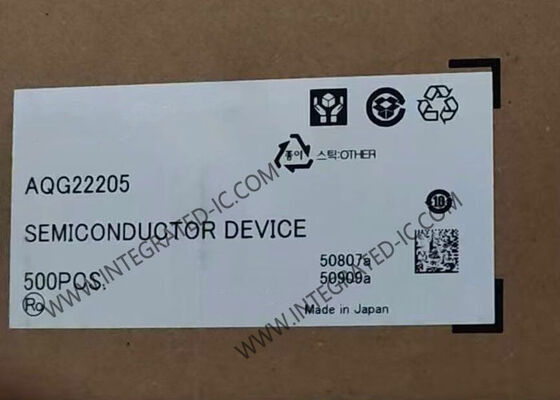

Large Image : AQG22205 Integrated Circuit Chip 75V to 264V 2A Solid State Photo-Coupled Relay with Snubber Circuit

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	AQG22205

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	4-SIP
Delivery Time:	3-5 work days
Payment Terms:	TT
Supply Ability:	10000 Pieces per Day

Contact Now

AQG22205 Integrated Circuit Chip 75V to 264V 2A Solid State Photo-Coupled Relay with Snubber Circuit

Description

Part Number:	AQG22205	Load Current Rating::	2 A
Load Voltage Rating::	75 VAC To 264 VAC	Relay Contact Form::	1 Form A (SPST-NO)
Control Voltage Range::	4 VDC To 6 VDC	Unit Weight::	181.440 G
Highlight:	75V to 264V Integrated Circuit Chip , 2A Load Current Photo-Coupled Relay , Snubber Circuit Integrated Solid State Relay

AQG22205 Integrated Circuit Chip 75V To 264V 2A Solid State Photo-Coupled Relay

AQG22205 is a 75V to 264V 2A Solid State Photo-Coupled Relay in 4-SIP package, designed for high-density PCB mounting applications.

Product Specifications

Series	AQ-G
Part Status	Active
Mounting Type	Through Hole
Relay Type	Photo-Coupled Relay (Photorelay)
Circuit	SPST-NO (1 Form A)
Output Type	AC
Voltage - Input	4 ~ 6VDC
Voltage - Load	75 V ~ 264 V
Load Current	2 A
Termination Style	PC Pin
Operating Temperature	-30°C ~ 80°C

Key Features

Space-saving design with maximum thickness of 4.5 mm, reducing mounting space by 30% compared to conventional SSRs
Integrated snubber circuit prevents malfunction caused by rapid voltage rise on output side
Available in both zero-cross type and random type configurations
High dielectric strength of 3,000V AC between input and output
Optimized for high-density PCB mounting requirements

Applications

Household appliances including air conditioners, refrigerators, and humidifiers
Healthcare and medical equipment
Industrial machinery such as NC machines, mounters, injection molders, and robots
Microcomputer boards
Amusement and amenity related equipment
