MID-360 3D LiDAR Laser Radar with 360° Omnidirectional FOV 10cm Minimal Blind Zone and Active Anti-Interference for Service Robots

MID-360 3D LiDAR Laser Radar with 360° Omnidirectional FOV 10cm Minimal Blind Zone and Active Anti-Interference for Service Robots
MID-360 3D LiDAR Laser Radar with 360° Omnidirectional FOV 10cm Minimal Blind Zone and Active Anti-Interference for Service Robots

Large Image :  MID-360 3D LiDAR Laser Radar with 360° Omnidirectional FOV 10cm Minimal Blind Zone and Active Anti-Interference for Service Robots

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MID-360
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: Standard package
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

MID-360 3D LiDAR Laser Radar with 360° Omnidirectional FOV 10cm Minimal Blind Zone and Active Anti-Interference for Service Robots

Description
Part Number: MID-360 Laser Wavelength: 905 Nm
Operating Temperature Range: -20°C To 55°C Storage Temperature Range: -40°C To 85°C
Power Consumption: 7W Weight: 265g
Highlight:

360° Omnidirectional FOV 3D LiDAR

,

10cm Minimal Blind Zone Laser Radar

,

Active Anti-Interference Detection and Ranging System

MID-360 3D Laser Radar Detection and Ranging System For Service Robots
The MID-360 represents a new generation of 3D LiDAR detection and ranging systems, pioneering a new era of hybrid solid-state LiDAR with 360° spatial perception. Its compact form factor enables flexible installation configurations. Furthermore, the MID-360 comprehensively addresses the enhanced perception requirements of mobile robots for navigation and obstacle avoidance, offering compatibility across both indoor and outdoor environments. This empowers mobile robots to enter a new era of spatial intelligence perception.
Technical Specifications
Laser wavelength905 nm
Eye safety ratingClass 1 (IEC 60825-1:2014)
Range (@100 klx)40 m @10% reflectivity; 70 m @80% reflectivity
Near-field blind zone≤10 cm
Field of view (FOV)360° × 59°
Range Random Error (1σ)≤2 cm (@10 m); ≤3 cm (@0.2 m)
Angular Random Error (1σ)0.15°
Point Cloud Output200,000 points/second
Point Cloud Frame Rate10 Hz (typical)
Anti-interference FunctionalityYes
Data Interface100 BASE-TX Ethernet
Data Synchronisation MethodsIEEE 1588-2008 (PTP v2), PPS (Pulse Per Second), GPS (PPS + UTC)
False Alarm Rate (@100 klx)<0.01%
Operating Temperature Range-20°C to 55°C
Storage Temperature Range-40°C to 85°C
Power consumption7W
Supply voltage range9-27VDC
Dimensions65×65×60 mm
WeightApprox. 265g
Key Features
  • 10cm minimal blind zone: Mid-360 achieves detection distances as short as 10cm at close range. Its compact form factor facilitates embedded installation, enabling seamless coverage with negligible blind spots.
  • Active Anti-Interference: Mid-360 incorporates anti-interference design, ensuring stable operation without mutual interference even in indoor environments with multiple coexisting LiDAR signals.
  • Compact Form Factor for Effortless Embedding: While delivering robust performance, Mid-360 maintains a compact size, facilitating concealed and flexible deployment. This enhances possibilities for integrated design in mobile robot aesthetics.
  • 360° Omnidirectional Ultra-Wide Field of View: Unlike traditional mechanical LiDARs, Mid-360 employs Livox's proprietary hybrid solid-state technology, achieving a horizontal field of view of 360° alongside a vertical field of view reaching 59°. With its expanded field of view, the Mid-360 enables mobile robots to perceive more complex 3D environments, providing comprehensive point cloud data for planning and decision-making.
  • Resistant to Outdoor Glare: The Mid-360 achieves a long-range detection distance of 70 metres at 80% reflectivity, delivering consistently outstanding performance in dim indoor and bright outdoor conditions with seamless transition.
Applications
Autonomous Forklift Trucks Autonomous Mobile Robots (AMR) Driverless Vehicles Service Robots

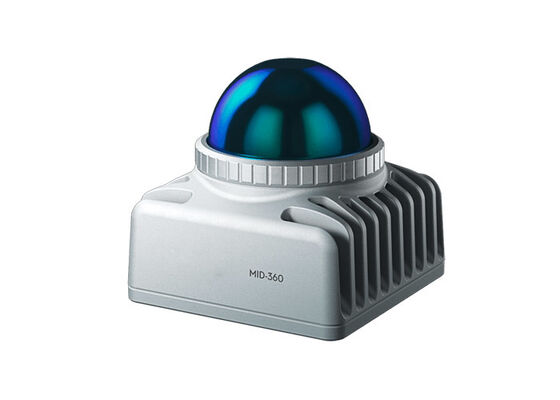

Product Image
