10147875-031LF eHPCE Enhanced High Power Card Edge Connector with 12V Voltage Rating and Gold Plating

10147875-031LF eHPCE Enhanced High Power Card Edge Connector with 12V Voltage Rating and Gold Plating
10147875-031LF eHPCE Enhanced High Power Card Edge Connector with 12V Voltage Rating and Gold Plating 10147875-031LF eHPCE Enhanced High Power Card Edge Connector with 12V Voltage Rating and Gold Plating

Large Image :  10147875-031LF eHPCE Enhanced High Power Card Edge Connector with 12V Voltage Rating and Gold Plating

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: 10147875-031LF
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: Standard package
Payment Terms: T/T,L/C,Western Union
Supply Ability: 10000 Pieces per Day
Contact Now

10147875-031LF eHPCE Enhanced High Power Card Edge Connector with 12V Voltage Rating and Gold Plating

Description
Part Number: 10147875-031LF Component Type: Card Edge
Voltage Rating: 12V Resistance (Contact): 4mΩ For Single Pin
Operating Temperature Range: -55°C To +140°C Dielectric Withstanding Voltage: 1800 VDC (Power) And 500 VDC (Signal)
Highlight:

12V Voltage Rating Card Edge Connector

,

Gold Plating eHPCE Connector

,

High Temperature Thermoplastic Housing High Power Connector

10147875-031LF eHPCE Enhanced High Power Card Edge Connector
The 10147875-031LF is an eHPCE® Enhanced High Power Card Edge Connector designed for high-performance applications requiring reliable power and signal transmission.
Product Specifications
Color - HousingBlack
Component TypeCard Edge
Current Rating12A/SP for 36 SP (Power), 3A/SP for 14SP (Signal)
Dielectric Withstanding Voltage1800 VDC (Power), 500 VDC (Signal)
Durability (Mating cycles)200
GenderReceptacle
Material HousingHigh Temperature Thermoplastic
Operating Temperature Range-55°C to +140°C
Plating Contact areaGold
Product SerieseHPCE® Enhanced High Power Card Edge Connector
Resistance (Contact)4mΩ for single pin
Resistance (Insulation)5000MΩ (Power), 500MΩ (Signal)
Tail PlatingTin
Termination StyleSolder To Board
Voltage Rating12V
Wipe (Power Contact)5.27mm (0.207in)
Wipe (Signal Contact)5.27mm (0.207in)

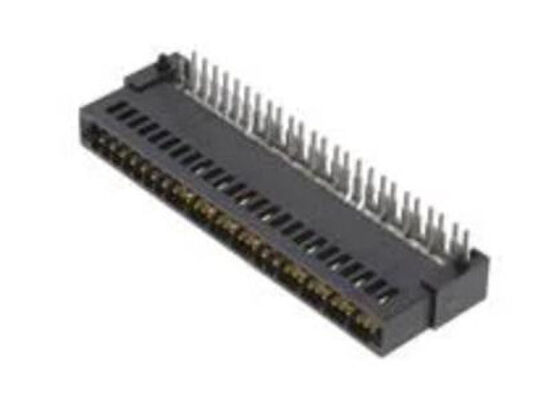

Product Image
10147875-031LF eHPCE Enhanced High Power Card Edge Connector with 12V Voltage Rating and Gold Plating 0
