SPP17N80C3 Integrated Circuit Chip 800V CoolMOS™ Power Transistor TO-220-3 N-Channel MOSFETs 17A

SPP17N80C3 Integrated Circuit Chip 800V CoolMOS™ Power Transistor TO-220-3 N-Channel MOSFETs 17A
SPP17N80C3 Integrated Circuit Chip 800V CoolMOS™ Power Transistor TO-220-3 N-Channel MOSFETs 17A SPP17N80C3 Integrated Circuit Chip 800V CoolMOS™ Power Transistor TO-220-3 N-Channel MOSFETs 17A

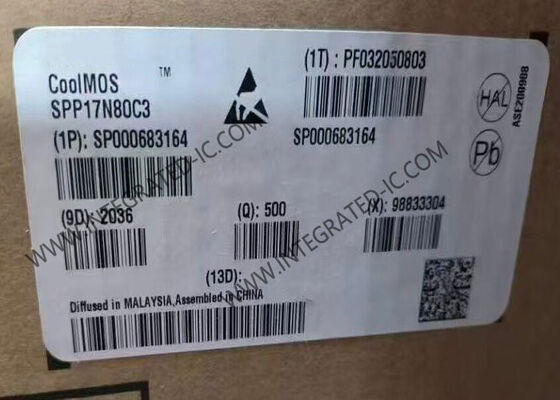

Large Image :  SPP17N80C3 Integrated Circuit Chip 800V CoolMOS™ Power Transistor TO-220-3 N-Channel MOSFETs 17A

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: SPP17N80C3
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-220-3
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

SPP17N80C3 Integrated Circuit Chip 800V CoolMOS™ Power Transistor TO-220-3 N-Channel MOSFETs 17A

Description
Part Number: SPP17N80C3 Vds - Drain-Source Breakdown Voltage: 800 V
Id - Continuous Drain Current: 17 A Rds On - Drain-Source Resistance: 290 MOhms
Qg - Gate Charge: 88 NC Pd - Power Dissipation: 227 W
Highlight:

800V Integrated Circuit Chip

,

17A Power Transistor

,

CoolMOS™ MOSFET

SPP17N80C3 Integrated Circuit Chip 800V CoolMOS™ Power Transistor
The SPP17N80C3 is an 800V CoolMOS™ N-Channel Power MOSFET Transistor in TO-220-3 package, designed for high-voltage power applications with exceptional performance characteristics.
Technical Specifications
Parameter Value
Series CoolMOS™
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 800 V
Current - Continuous Drain (Id) @ 25°C 17A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 290mOhm @ 11A, 10V
Vgs(th) (Max) @ Id 3.9V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 177 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 2320 pF @ 25 V
Power Dissipation (Max) 208W (Tc)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Supplier Device Package PG-TO220-3-1
Package / Case TO-220-3
Key Features
  • New revolutionary high voltage technology
  • Worldwide best RDS(on) in TO-220 package
  • Ultra low gate charge for efficient switching
  • Periodic avalanche rated for robust performance
  • Extreme dv/dt rated for high-speed applications
  • Ultra low effective capacitances
  • Improved transconductance characteristics
  • PG-TO-220-3-31: Fully isolated package (2500 VAC; 1 minute)
