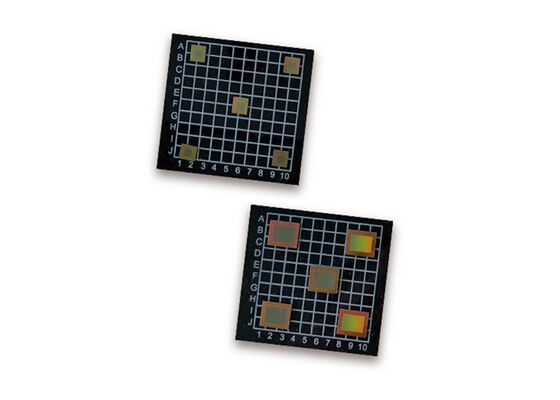

OPN8018 Time-Of-Flight Sensor IC with 640x480 Resolution and Low Power Consumption for 3D Sensing

OPN8018 Sensor IC Time-Of-Flight Imaging Sensors For 3D Sensing

Product Description Of OPN8018
OPN8018 is Time-of-Flight (ToF) imaging sensors for 3D sensing covering 100x100 / QVGA (320x240) / VGA (640x480) level matrix sensing resolutions. The 3D sensing is realized upon 850 nm and 940 nm NIR wave length with an industry leading accuracy. The power consumption achieves the lowest level in the industry, which benefits many portable and energy saving applications.

Specifications Of OPN8018
Resolution:640x480
Die size:6.5x6.28 mm2
Frame rate:5/10/20/30/60 fps
Accuracy:1% @5m
Data Interface:MIPI CSI-2,4 Lanes
Control Interface:CCI(I2C)
Power consumption:<120mW
Operating temperature:-20~85 °℃

Features Of OPN8018
Frame rate: 5fps, 10fps, 20fps, 30fps, 60fps, 120fps
Low power consumption with flexible scalability
Sensor array shrink and extension
Master and slave mode, flexible for building sensor chains
Built-in multi-ToF interference immunity
Accurate temperature sensing for robust environment adaptability
One system clock for all range measurement with wide range flexibility
Leading accurate measurement resolution in the industry
Micro lens availability with advanced optical system solution capability

Applications Of OPN8018
3D Sensing
3D face & gesture recognition
3D Gaming and AR/VR solutions
Drone, AGV and robot sensing
Surveillance and industry automation
Automotive self-driving sensing
