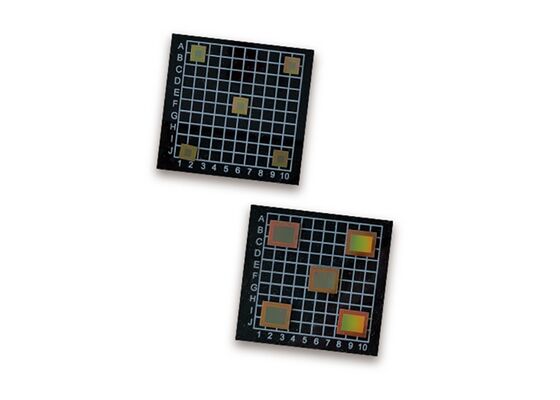

OPN8008P Front-Illuminated Global Shutter ToF CMOS Image Sensor with 320x240 Resolution and 5/10/20/30/60 fps Frame Rate

OPN8008P Sensor IC Front-Illuminated Global Shutter ToF CMOS Image Sensor

Product Description Of OPN8008P
OPN8008P is a 1/3" optical format, 0.08 MP, 16.75 μm pixel pitch, front-illuminated global shutter ToF CMOS image sensor. It features a 320 x 240 resolution global shutter ToF sensor.

Specifications Of OPN8008P
Resolution:320x240
Die size:7.52x6.42 mm2
Frame rate:5/10/20/30/60 fps
Accuracy:1% @5m
Data Interface:MIPI CSI-2,2 Lanes
Control Interface:CCI(I2C)
Power consumption:<100mW
Operating temperature:-20~85 °℃

Features Of OPN8008P
Frame rate: 5fps, 10fps, 20fps, 30fps, 60fps, 120fps
Low power consumption with flexible scalability
Sensor array shrink and extension
Master and slave mode, flexible for building sensor chains
Built-in multi-ToF interference immunity
Accurate temperature sensing for robust environment adaptability
One system clock for all range measurement with wide range flexibility
Leading accurate measurement resolution in the industry
Micro lens availability with advanced optical system solution capability

Applications Of OPN8008P
3D Sensing
3D face & gesture recognition
3D Gaming and AR/VR solutions
Drone, AGV and robot sensing
Surveillance and industry automation
Automotive self-driving sensing
