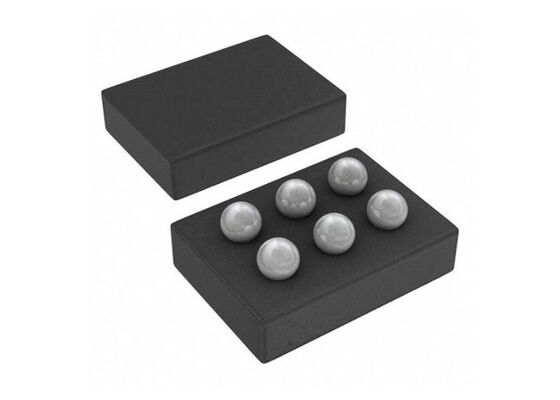

LMG1020YFFR Integrated Circuit Chip Single Channel Low-Side Gate Driver DSBGA6
The LMG1020YFFR is a single, low-side driver specifically engineered for driving GaN FETs and logic-level MOSFETs in high-speed applications including LiDAR, time-of-flight systems, facial recognition, and various power converters requiring low-side drivers.
Product Overview
The design simplicity of the LMG1020YFFR enables extremely fast propagation delays of 2.5 nanoseconds and minimum pulse width of 1 nanosecond. The drive strength is independently adjustable for both pull-up and pull-down edges by connecting external resistors between the gate and OUTH and OUTL, respectively.
Technical Specifications
| Parameter |
Value |
| Driven Configuration |
Low-Side |
| Channel Type |
Single |
| Number of Drivers |
1 |
| Gate Type |
MOSFET (N-Channel, P-Channel) |
| Voltage - Supply |
4.75V ~ 5.25V |
| Logic Voltage - VIL, VIH |
1.8V, 1.7V |
| Current - Peak Output (Source, Sink) |
7A, 5A |
| Input Type |
Inverting, Non-Inverting |
| Rise / Fall Time (Typ) |
375ps, 350ps |
| Operating Temperature |
-40°C ~ 125°C (TJ) |
| Mounting Type |
Surface Mount |
| Package / Case |
6-UFBGA, DSBGA |
| Supplier Device Package |
6-DSBGA |
Key Features
- Low-Side, Ultra-Fast Gate Driver for GaN and Silicon FETs
- 1 ns Minimum Input Pulse Width
- Up to 60 MHz Operation
- 2.5 ns Typical, 4.5 ns Maximum Propagation Delay
- 400 ps Typical Rise and Fall Time
- 7-A Peak Source and 5-A Peak Sink Currents
- 5-V Supply Voltage
- UVLO and Overtemperature Protection
Applications
- LiDAR Systems
- Time-of-Flight Laser Drivers
- Facial Recognition Systems
- Class-E Wireless Chargers
- VHF Resonant Power Converters
- GaN-Based Synchronous Rectifier
