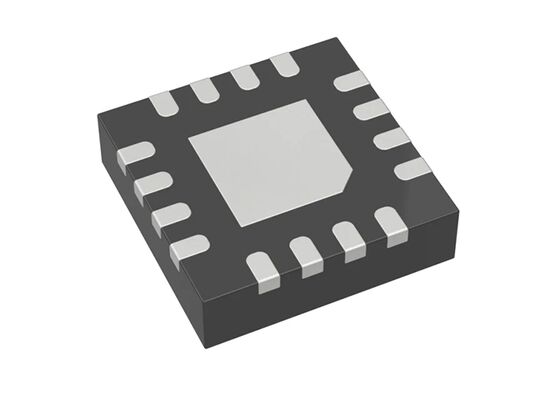

TPC112S8U Integrated Circuit Chip Octal 12-Bit Low-Power High-Performance Digital-to-Analog Converter

TPC112S8U Integrated Circuit Chip Octal 12-Bit Low-Power High-Performance DAC

Product Description Of TPC112S8U
TPC112S8U is pin-compatible 16-bit and 12-bit digital-to-analog converters. These devices are 8-channel, low-power, and buffered voltageout DACs and are guaranteed monotonic by design. The devices use a precision external reference applied through the high-resistance input for rail-to-rail operation and low system power consumption.

TPC112S8U accept a wide 2.7-V to 5.5-V supply voltage range. The parts incorporate a power-on reset circuit to ensure that the DAC output powers up to 0 V and remains there until a valid write takes place.

The on-chip precision output amplifier of the TPC112S8U allows rail-to-rail output swing to be achieved. For remote sensing applications, the inverting input of the output amplifier is available to users. The TPC112S8U use a versatile 3-wire serial interface that operates at clock rates up to 30 MHz and is compatible with SPI®, QSPI™, MICROWIRE™, and DSP interface standards.

Specifications Of TPC112S8U

Resolution:12
VDD (V):2.7~5.5
Number of Channels:8
Output Type:Bufferred Voltage
Reference Type:Ext
Settling Time (μS):14
Architecture:String
Output POR Status:0
INL:±2
DNL (LSB, Max):±1
Offset Error (mV, Max):±30
IDD (μA/CH, Max) (μA):80
Gain Error (% of FSR, Max):±0.3
Voltage Output Range (V):0~Vref
D to A Glitch Impulse (nV-sec):2
Interface Type:SPI
Temperature Range (℃):-40 to +125

Features Of TPC112S8U
Octal, 12-Bit Pin-Compatible DACs
• Low Power Consumption (1.6 mA Typ)
• Differential Nonlinearity: ±1 LSB (Max)
• Glitch Energy: 2 nV-s
• Power-on Reset to Zero
• Supply Range: 2.7 V to 5.5 V
• Buffered Rail-to-Rail Output Operation
• Safe Power-on Reset (POR) to Zero DAC Output
• Fast 30-MHz, 3-Wire, SPI/QSPI/MICROWIRE Compatible Serial Interface
• Schmitt-Trigger Inputs for Direct Optocoupler Interface
• SYNC Interrupt Facility

Applications Of TPC112S8U
Gain and Offset Adjustment
Process Control and Servo Loops
Programmable Voltage and Current Sources
Programmable Attenuators
Automatic Test Equipment
