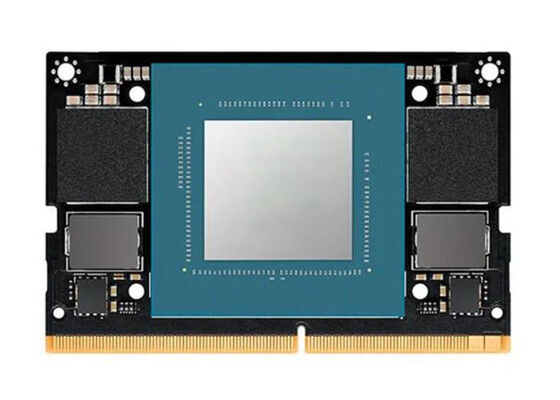

Jetson Orin™ NX 16GB System-On-Module
Part Number: 900-13767-0000-000
Product Overview
The Jetson Orin™ NX 16GB System-On-Module combines Ampere GPU with Arm Cortex-A78AE v8.2 64-bit CPU and 16 GB LPDDR5 memory, delivering up to 100 (Sparse) INT8 TOPs and 50 (Dense) INT8 TOPs AI performance for demanding edge computing applications.
Core Hardware Specifications
- Processor & GPU: 8-core Arm Cortex-A78AE v8.2 64-bit CPU; 1024-core Ampere architecture GPU with 32 Tensor Cores
- Power Management: Adjustable power consumption from 10W to 25W
- AI Performance: Up to 100 TOPS (INT8, standard mode), peaking at 157 TOPS in super mode (INT8 sparse)
- Memory: 16GB 128-bit LPDDR5 on-board memory with 102 GB/s bandwidth
- Storage: No built-in storage; supports NVMe SSD expansion
- Form Factor: 260-pin SO-DIMM standard size for easy integration
- Interfaces: MIPI CSI-2 camera interface, PCIe 4.0, USB 3.2 Gen2, HDMI/DP display output
- Industrial Control: Multiple interfaces including UART, SPI, I2C, and CAN
- Software: Compatible with the full JetPack SDK software stack
Application Scenarios
Ideal for demanding applications including drones, handheld terminals, robotics, industrial vision systems, and edge computing gateways where size, power consumption, and AI computing power are critical. Offers a fivefold performance improvement over the previous-generation Xavier NX with outstanding energy efficiency.
