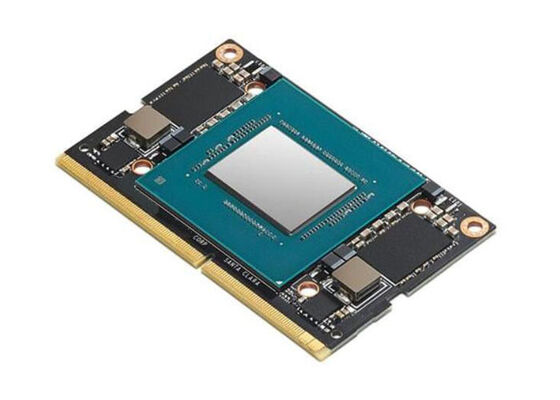

900-83668-0030-000 Jetson Xavier™ NX 16GB AI Processor System-On-Module
The 900-83668-0030-000 Jetson Xavier™ NX 16GB brings supercomputer performance to the edge in a compact system-on-module (SOM) that's smaller than a credit card. This energy-efficient module delivers server-class performance—up to 14 TOPS at 10W or 21 TOPS at 15W or 20W.
This unique combination of form-factor, performance, and power efficiency enables innovative edge devices across multiple industries including manufacturing, logistics, retail, service, agriculture, smart cities, and medical instruments.
Product Specifications
| Series |
Jetson Xavier™ NX |
| Core Processor |
Carmel ARMv8.2 |
| Speed |
1.9GHz |
| Number of Cores |
6 |
| Power (Watts) |
10W, 15W, 20W |
| Size / Dimension |
1.771" x 2.740" (45.00mm x 69.60mm) |
| Expansion Site/Bus |
CAN, GPIO, I2C, I2S, SDIO, SPI, UART |
| RAM Capacity/Installed |
16GB |
| Storage Interface |
eMMC 5.1 |
| Video Outputs |
HDMI |
| Ethernet |
10/100/1000 Mbps |
| USB |
USB 2.0 (3), USB 3.1 (1) |
Key Features
- 384-core NVIDIA Volta™ GPU with 48 Tensor cores
- 2x NVDLA
- 6-core NVIDIA Carmel Arm®v8.2 64-bit CPU
- 16GB 128-bit LPDDR4x
- 16GB eMMC 5.1
- 2x PVA
- Voltage input 5V
- Module Power: 10W - 20W
Product Image
