V28C15T100BL 28V Input 100W Micro DC DC Converter Module with Isolated Output

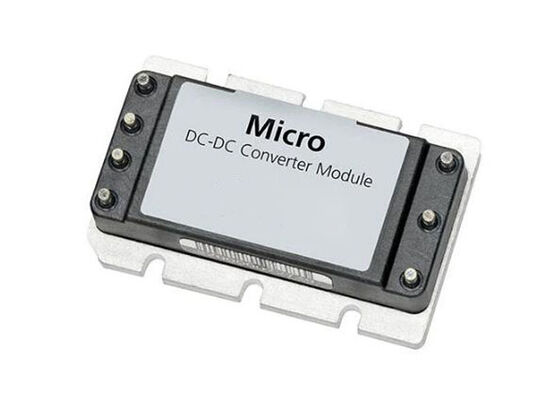

Large Image : V28C15T100BL 28V Input 100W Micro DC DC Converter Module with Isolated Output

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	V28C15T100BL

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	MODULE
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

V28C15T100BL 28V Input 100W Micro DC DC Converter Module with Isolated Output

Description

Part Number:	V28C15T100BL	Input Voltage:	28V
Output Voltage:	15V	Output Power:	100W
Operating Temperature:	-40°C ~ 100°C	Quarter Brick:	2.28 X 1.45 X 0.5in / 57.9 X 36.8 X 12.7mm
Highlight:	100W DC DC Converter Module , 28V Input Micro DC DC Converter , Isolated Output Integrated Circuit Chip

V28C15T100BL Integrated Circuit Chip 28V 100W Micro DC DC Converter Module

The V28C15T100BL is a 28V, 100W Micro DC DC Converter Module that utilizes advanced power processing, control, and packaging technologies to deliver exceptional performance, flexibility, reliability, and cost-effectiveness. High-frequency ZCS/ZVS switching provides high power density with low noise and high efficiency.

Specifications

Product Category	DC/DC Converters - Through Hole
Isolation	Isolated
Number of Outputs	1 Output
Output Power	100 W
Input Voltage, Nominal	28 V
Input Voltage - Min	9 V
Input Voltage - Max	36 V
Output Voltage-Channel 1	15 V
Output Current-Channel 1	6.67 A
Isolation Voltage	3 kV
Package / Case	1/4 Brick
Length	57.9 mm (2.28 in)
Width	36.8 mm (1.449 in)
Height	12.7 mm (0.5 in)
Input Voltage Range	9 V to 36 V
Maximum Operating Temperature	+100 ℃
Minimum Operating Temperature	-40 ℃

Key Features

DC input range: 9 - 36V
Isolated output
Input surge withstand: 50V for 100ms
DC output: 3.3 - 48V
Programmable output: 10 - 110%
Regulation: ±0.2% no load to full load
Efficiency: Up to 81%
Maximum operating temp: 100°C, full load
Power density: up to 60W per cubic inch
Height above board: 0.43in [10.9mm]
Parallelable, with N+M fault tolerance
Low-noise ZCS / ZVS architecture
Low noise zero current switching and zero voltage switching technology
Single-wire paralleling
Output voltage adjust from 10-110%
Logic enable / disable
Input undervoltage lockout
Output overvoltage protection
RoHS Compliant (with F or G pin option)

Applications

ATE
Communications
Defense and Aerospace
Distributed Power
Industrial and Process Control
Medical
