SN65HVD1785DR Integrated Circuit Chip 70V Fault-Protected RS-485 Transceiver with 115 kb/s Data Rate for Half-Duplex Communication

Large Image : SN65HVD1785DR Integrated Circuit Chip 70V Fault-Protected RS-485 Transceiver with 115 kb/s Data Rate for Half-Duplex Communication

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	SN65HVD1785DR

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	SOIC-8
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

SN65HVD1785DR Integrated Circuit Chip 70V Fault-Protected RS-485 Transceiver with 115 kb/s Data Rate for Half-Duplex Communication

Description

Part Number:	SN65HVD1785DR	Data Rate:	115 Kb/s
Operating Supply Current:	6 MA	Protocol:	RS422, RS485
Receiver Hysteresis:	50 MV	Voltage - Supply:	4.5V ~ 5.5V
Highlight:	70V Fault-Protected RS-485 Transceiver , 115 kb/s Data Rate Integrated Circuit Chip , Half-Duplex Communication SN65HVD1785DR

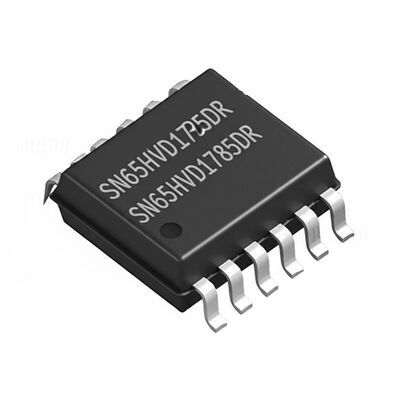

SN65HVD1785DR Integrated Circuit Chip 70V Fault-Protected RS-485 Transceivers SOIC8

The SN65HVD1785DR is a 70V fault-protected RS-485 transceiver designed to withstand overvoltage faults including direct shorts to power supplies, mis-wiring faults, connector failures, cable crushes, and tool misapplications. This device offers robust ESD protection with high levels of human-body model specification protection.

The SN65HVD1785DR integrates a differential driver and differential receiver operating from a single power supply. The driver differential outputs and receiver differential inputs are internally connected to form a bus port suitable for half-duplex (two-wire bus) communication.

Specifications

Type	Transceiver
Protocol	RS422, RS485
Number of Drivers/Receivers	1/1
Duplex	Half
Receiver Hysteresis	50 mV
Data Rate	115Kbps
Voltage - Supply	4.5V ~ 5.5V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC

Key Features

Bus-Pin Fault Protection to ±70 V (HVD1785, 86, 91, 92) and ±30 V (HVD1787, 93)
Common-Mode Voltage Range (-20 V to 25 V) more than doubles TIA/EIA 485 requirement
Bus I/O Protection with ±16 kV JEDEC HBM Protection
Reduced unit load for up to 256 nodes
Failsafe receiver for open-circuit, short-circuit and idle-bus conditions
Low power consumption with low standby supply current (1 μA typical)
ICC 5 mA quiescent during operation
Power-up, power-down glitch-free operation

Applications

Designed for RS-485 and RS-422 networks
