MPQ6547AGLE-AEC1 Integrated Circuit Chip BLDC Motor Driver with 4V to 30V Operating Voltage and 1.5A Continuous Output Current

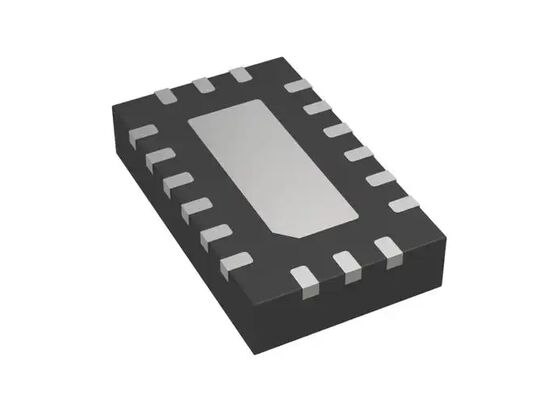

Large Image : MPQ6547AGLE-AEC1 Integrated Circuit Chip BLDC Motor Driver with 4V to 30V Operating Voltage and 1.5A Continuous Output Current

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MPQ6547AGLE-AEC1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QFN-18
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

MPQ6547AGLE-AEC1 Integrated Circuit Chip BLDC Motor Driver with 4V to 30V Operating Voltage and 1.5A Continuous Output Current

Description

Part Number:

MPQ6547AGLE-AEC1

Package:

QFN-18

Continuous Output Current:

1.5A

Operating Supply Voltage:

4V To 30V

Highlight:

4V to 30V Operating Voltage Integrated Circuit Chip

1.5A Continuous Output Current BLDC Motor Driver

Three-Phase Brushless DC Motor Driver Integrated Circuit Chip

MPQ6547AGLE-AEC1 Integrated Circuit Chip 4V To 30V 1.5A Three-Phase Brushless DC Motor Driver

The MPQ6547AGLE-AEC1 is a three-phase, brushless DC (BLDC) motor driver that integrates three half-bridges, consisting of six N-channel Power MOSFETs, along with pre-drivers and gate drive power supplies.

This device can deliver up to 1.5A of continuous current depending on thermal and PCB conditions, with an adjustable over-current protection (OCP) threshold. It uses an internal charge pump to generate the gate drive supply voltage for the high-side MOSFETs (HS-FETs), and a trickle charge circuit that maintains sufficient gate drive voltage to operate at 100% duty cycle.

The MPQ6547AGLE-AEC1 features unique independent ground pins for each half-bridge, enabling current measurement through an external shunt resistor for different application requirements. Internal safety features include thermal shutdown, under-voltage lockout (UVLO), and OCP.

Available in a QFN-18 (3mmx4mm) package, this device is AEC-Q100 qualified for automotive applications.

Key Features & Benefits

4V to 30V Operating Supply Voltage
Three Integrated Half-Bridge Drivers
Up to 1.5A Continuous Output Current (IOUT), 3A Peak IOUT
Low MOSFET On Resistance (HS-FET: 50mΩ, LS-FET: 40mΩ)
Pulse-Width Modulation (PWM) Inputs
Internal Charge Pump Supports 100% Duty Cycle Operation
Automatic Synchronous Rectification
Under-Voltage Lockout (UVLO) and Thermal Shutdown Protection
Output Fault Flag
Over-Current Protection (OCP)
Available in QFN-18 (3mmx4mm) Package with Wettable Flanks
AEC-Q100 Grade 1 Qualified
