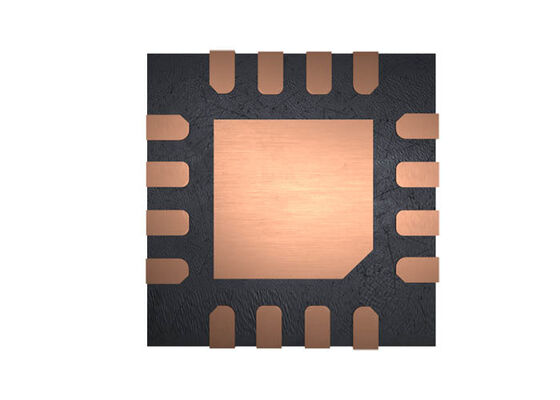

MA900GQE Fully Differential Magnetic Angle Sensor with Stray-Field Immunity and ±0.02° RMS Noise

MA900GQE Fully Differential Magnetic Angle Sensor with Stray-Field Immunity and ±0.02° RMS Noise
MA900GQE Fully Differential Magnetic Angle Sensor with Stray-Field Immunity and ±0.02° RMS Noise

Large Image :  MA900GQE Fully Differential Magnetic Angle Sensor with Stray-Field Immunity and ±0.02° RMS Noise

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MA900GQE
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-16
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

MA900GQE Fully Differential Magnetic Angle Sensor with Stray-Field Immunity and ±0.02° RMS Noise

Description
Part Number: MA900GQE Package: QFN-16
Operating Temperature: -40°C To +150°C Operating Current: 12mA
Supply: 5V Or 3.3V RMS Noise: ±0.02°
Highlight:

Fully Differential Magnetic Angle Sensor

,

Stray-Field Immunity Digital Angle Sensor

,

±0.02° RMS Noise Sensor IC

MA900GQE Sensor IC Fully Differential Magnetic Digital Angle Sensor With Stray-Field Immunity
The MA900GQE is a contactless, precision magnetic absolute angle position sensor that extracts angle measurements from magnetic field differences at multiple locations on the sensor IC. This differential methodology eliminates parasitic magnetic field interference, making it ideal for end-of-shaft sensor applications with simple target magnets. For rapid data acquisition and processing, the MA900GQE delivers accurate angle measurements from 0 RPM to over 100,000 RPM.
The sensor features magnetic field strength detection with configurable thresholds for magnet proximity sensing, enabling knob axial position detection and diagnostic functions. On-chip non-volatile memory (NVM) stores configuration parameters including reference zero angle position, ABZ encoder settings, and UVW emulation configuration.
Available in a compact QFN-16 (3mm x 3mm) package with wettable flanks.
Key Features & Benefits
  • Absolute Angle Encoder with ±0.02° RMS Noise at 3kHz Bandwidth
  • Robust against parasitic stray fields exceeding 4kA/m DC or 5mT
  • Zero lag performance for real-time applications
  • Serial Peripheral Interface (SPI) or I2C serial interface for digital angle readout and chip configuration
  • ABZ Quadrature Encoder Interface with configurable pulses-per-turn (PPT)
  • UVW Interface with 1-to-8 pole pair emulation
  • Configurable magnetic field strength detection for diagnostic checks
  • Dedicated push-button interface
  • 5V or 3.3V supply compatibility
  • 12mA operating current
  • Wide operating temperature range: -40°C to +150°C
